Home Battery kits Sun Fun Kits Polaris Ranger 315 AH EV Lithium Conversion Kit - 51.2v 16.4 kWh 24HP Bluetooth & Heating

Sun Fun Kits Polaris Ranger 315 AH EV Lithium Conversion Kit - 51.2v 16.4 kWh 24HP Bluetooth & Heating

SKU: SFK-PREV-4

Stock Status: In Stock

Shipping Availability: 1 Week

Sun Fun Kits Polaris Ranger 315 AH EV Lithium Conv
Sun Fun Kits Polaris Ranger 315 AH EV Lithium Conv
Sun Fun Kits Polaris Ranger 315 AH EV Lithium Conv
Sun Fun Kits Polaris Ranger 315 AH EV Lithium Conv
Sun Fun Kits Polaris Ranger 315 AH EV Lithium Conv
Sun Fun Kits Polaris Ranger 315 AH EV Lithium Conv
Sun Fun Kits Polaris Ranger 315 AH EV Lithium Conv
Sun Fun Kits Polaris Ranger 315 AH EV Lithium Conv
Sun Fun Kits Polaris Ranger 315 AH EV Lithium Conv
Sun Fun Kits Polaris Ranger 315 AH EV Lithium Conv
Sun Fun Kits Polaris Ranger 315 AH EV Lithium Conv
Sun Fun Kits Polaris Ranger 315 AH EV Lithium Conv
Sun Fun Kits Polaris Ranger 315 AH EV Lithium Conv

Summary

Bar none the best lithium conversion for the Polaris Ranger EV, puts 48v single batteries to shame! The SFK kits gives you: lightest conversion for the capacity a massive 315AH / 16.4 kWh, the easiest to install (no cutting or welding) with batteries fitting stock trays, mounts, and bays. Up to 24HP peak, standby heating so you can regen in below freezing temperature, massive range of 70+ miles, and 450 lbs lighter that stock. Its the only kit where everything remains functional including the 12v system that runs dashboard lights and charge status, run 12v winches and snow plows at up to 350 amps you get the best of 12v power and 48v power form a single kit. Watch our detailed videos to see how its installed.

Battery Weight (Lbs)

Battery Weight (Lbs)

240
Max Discharge (Amps)

Max Discharge (Amps)

350
Battery Capacity (AH)

Battery Capacity (AH)

315
Voltage

Voltage

51.2
Cycle Life

Cycle Life

8000 at 80% DOD
Data Port

Data Port

RS485 Data Port
Heating System

Heating System

Auto & Manual
Peak Output Power (kW)

Peak Output Power (kW)

18000
Max Horsepower

Max Horsepower

24

Battery Equalizer

Equalizing System

Equalizing System

Select between equalizer or 4 port charger, used to keep your SFK batteries in balance.

Highly recommended for people in cold weather that use standby heating routinely or wish to use one of the batteries to supply 12v to a winch or snow plow. Charges to full on any Delta-Q profile, so programming is not needed, but profile 233 is recommended for best results.

4 Port Supplemental Charger
4 Port Supplemental Charger
4 Port Supplemental Charger
4 Port Supplemental Charger

Works well for most users and is budget friendly.

Battery Equalizer

Battery Upgrades

Data Port

Data Port

Upgrades all 4 batteries with data ports for firmware upgrades and new wired devices such as the SFK Sports Hub.

Add RS485 Data Port
Add RS485 Data Port
Add RS485 Data Port
Add RS485 Data Port
Delta-Q Reprogramming

Delta-Q Reprogramming

The stock profiles (such as 73) on the Quiq charger is more than capable of charging your SFK batteries to full 100%. However, if you prefer a native LFP lithium profile you can use the delta-q programmer to set the charger to profile 233 or 386 (native LFP).

Delta-Q programmer rental, we will ship a programmer to you so you can reprogram your charger. A prepaid shipping label will be included to ship the programmer back to us.

Summary

Base Price

$4,125.00 (3% OFF)

On Sale:

$3,995.00

Battery Equalizer

Equalizing System: 4 Port Supplemental Charger

$125.00

Price w/ Options

$4,120.00

Description

Sun Fun Kits present the fastest, easiest, “stock-i-est”, Polaris Ranger EV conversion on the market! If you are looking to replace your stock lead acid batteries with lithiums then this conversion is for you. The SFK Polaris Ranger EV kit does not require changing battery trays, drilling new holes, or having to replace the stock (Quiq) charging equipment, it is a fast straight forward conversion that will provide you with between 60 to 70 miles of range and can be done in about 2 - 3 hours.

Install with 4 port charger (2010-2014 Ranger EV):

Intro: 0:00

Battery Install: 1:18

Charger Install: 5:34

Winch Cable Setup: 8:14

Charge Port Install: 10:59

Battery Cable Install: 12:40

Battery LED Functions: 21:23

Delta-Q Stock Profile: 25:42

Delta-Q Lithium Profile: 28:42

SFK BMS APP: 38:37

Onroad Performance Test: 44:27

Offroad Hill Climb Test: 46:33

Winch Pull Test: 48:19

Lightbars & Soundbar: 51:42

Install with 4 port charger (2015-2022 Ranger EV):

Charger Install on 2015 and Newer Ranger EVs: 0:00

Cable Prep (and Removing Equalizer if Upgrading): 2:45

Winch Setup, Massive 12V DC Power: 5:35

Battery Cable Setup and Install: 10:58

Winch Test and Charge Test: 14:45

Install with equalizer:

Intro: 0:00

Removing Lead Batteries: 3:34

Comparing Size: 5:45

Installing SFK Batteries: 6:48

Setting Up Wires: 8:03

SFK Equalizer: 10:07

Test Drive: 11:35

Stock Charger: 17:46

polaris-facebook-post-1
polaris-facebook-post-2
polaris-facebook-post-3
polaris-facebook-post-4
polaris-facebook-post-5

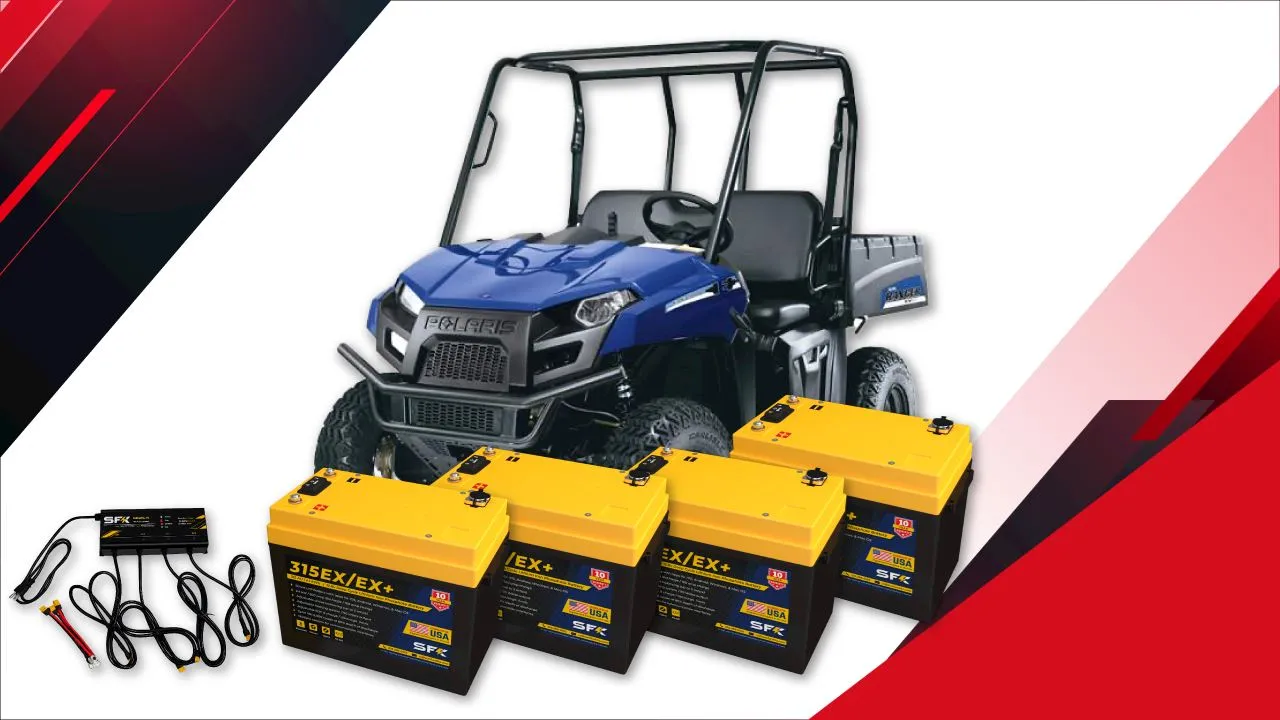

The kit includes 4x SFK315EX batteries, the SFK battery equalizer, 2/0 gauge series connecting cables, and 8 extended length mounting bots. The kit uses the stock battery trays and secures using the stock battery retention bracket. After the conversion you will be 450 lbs lighter than stock and will have 60% more usable range than stock.

Using the SFK battery equalizer, you won’t have to worry about imbalanced batteries as the equalizer will ensure all batteries stay in unison. If you ever decide to sell your Ranger, you can use the 315EX batteries in a normal 12v based setup such as in an RV or back up power.

The batteries support heating (both during charging as well as standby heating which can keep them warm even when not charging), bluetooth communication, and have a user friendly app that will show you vehicle speed, state of charge (fuel gauge), vehicle power and battery temperature. The SFK315EX also support battery life extending features such as setting a power reserve cut-off (e.g. you can set the batteries to stop discharging when only 10% is left) or you can send a maximum charge level (such as setting it to 90% max charge) this means you can leave you batteries plugged in and not worry about degradation at high or low states of charge levels.

In terms of performance, you will have access to 18 kW (24 horsepower) peak up fo 50 seconds and will easily reach the top speed of your vehicle (limited to 23mph as per federal regulations). You can drive up to 45 miles at full speed off a single charge (on paved terrain), with mixed speed driving you can expect between 60 - 70 miles.

Features

  • 16.4 kWh of reliable lithium power, replaces all 8 lead acid stock batteries and weighs 450 lbs less than the stock battery system with double the range.
  • 60 - 70 miles of range in high mode (paved roads).
  • Up to 350 amps of 12v power for winch / snow plow.
  • Up to 18 kW (24 horsepower) of peak power, and 7.5 kW of continuous power.
  • 350 amp discharge capable, 145 amp continuous rating (can run 145 amps form 100% to 0% without hitting thermal cut-off limit).
  • GEN 2 B Switch allows Bluetooth to be turned on/off, full active balancer control, and can show battery temperature.
  • Expected cycle life of 8000 cycles at 80% DOD, and up to 11000 cycles at 50% DOD, 12-15 year usage life.
  • Fully compatible with existing Polaris Ranger EV architecture including standard 48v lead acid on board charger.
  • Built-in cell heaters to allow for low temperature charging, temperature to activate heaters can be set inside the app, users can also test heating via the app.
  • Triple Heating Modes! The only battery on the market that lets users select how the heating system works, select form automatic low temp charging heating, or use standby heating to keep the battery warm even when its idle, or you can disable heating altogether and use low temperature protection only.
  • User selectable Max/Min State of charge, you can set upper and lower state of charge limits on your battery, e.g. set a lower limit of 20%, once the battery reaches this limit discharging will become disabled. Alternatively you can set an upper limit to 80%, so now you can leave your rv/coach plugged in and your battery will not be stressed as it will stop charging at 80% there by extending it's life.
  • Data Port option for future expandability including wired options and add-on, required for future firmware updates.
  • Smart phone/device compatible with Bluetooth monitoring/configurable app. Available for IOS/Android.
  • Automatic low/high temperature and low/high voltage cut-off to stop battery damage from occurring.
  • Automatic short circuit prevention as well as over charge and over discharge prevention.

Recommended Uses

  • Use in electric ATV units that operate in the 48v range such as the Polaris Ranger EV
  • Use in other DC setups where a 48v dc supply is needed
  • Can be re-configured to run in 24v (2s-2P)
  • Can be re-configured to run as a large 12v power bank (4p)

Downloads

SFK315EX-Manual-Revision 1.6. January 2026

Properties

Shipping Availability 1 Week
Manufacturer Sun Fun Kits
SKU SFK-PREV-4
Freight Class 60
Battery Specs
Chemistry LifePo4 (lithium Iron Phosphate)
Data Port RS485 Data Port
Certification Standard UL 1642 , UL 9540A
Cycle Life 8000 at 80% DOD
Heating System Auto & Manual
Continuous Discharge (Amps) 200
Max Horsepower 24
Peak Output Power (kW) 18000
Delta-Q Reprogramming Rent a Delta-Q programmer.
Continuous Discharge (Watts) 7500
Cells 16
Battery Capacity (AH) 315
Voltage 51.2
Watt Hour Capacity (kWh) 16.4
Max Discharge (Amps) 350
Max Charge (Amps) 160
Construction Material ABS, Aluminum, PCB
Battery Weight (Lbs) 240
Balance Capacity (AH) 5200
Terminal Bolts M8
Physical Specs
Item Weight 60.05 lbs , 27.24 Kg
Height 11.6 Inch , 290 MM , 10.6 Inch Without Terminal Screws
Width 180 MM , 7.5 Inch
Length 345 MM , 13.6 Inch , 14.6 Inch / 371 MM Including handles
Kit Configurator
Equalizing System 4 Port Supplemental Charger , Battery Equalizer
General Information
Country of Origin USA , China
Service and Support Serviced, Repairs in USA
Warranty 8 Year 60/96 Month Warranty , 10 Year 60/120 Month Warranty (Dealer Installed)
