Sun Fun Kits Polaris Ranger EV Lithium Conversion Kit - 16.4 kWh 315 AH 51.2v Bluetooth & Heating

Brand: Sun Fun Kits

SKU: SFK-PREV-4

Stock Status: In Stock

Battery Upgrades

Data Port

Data Port

Upgrades the batteries with data ports for firmware upgrades and new wired devices such as the SFK Sports Hub.

Our Starting Price

$4,150.00

Configuration Price

$4,150.00

Description

Sun Fun Kits present the fastest, easiest, “stock-i-est”, Polaris Ranger EV conversion on the market! If you are looking to replace your stock lead acid batteries with lithiums then this conversion is for you. The SFK Polaris Ranger EV kit does not require changing battery trays, drilling new holes, or having to replace the stock (Quiq) charging equipment, it is a fast straight forward conversion that will provide you with between 45 to 70 miles of range and can be done in about 2 - 3 hours.

Intro : 0:00

Removing Lead Acid Batteries : 3:34

Comparing Size : 5:45

Installing SFK Batteries : 6:48

Setting Up Wires : 8:03

SFK Equalizer : 10:07

Test Drive : 11:35

Stock Charger : 17:46

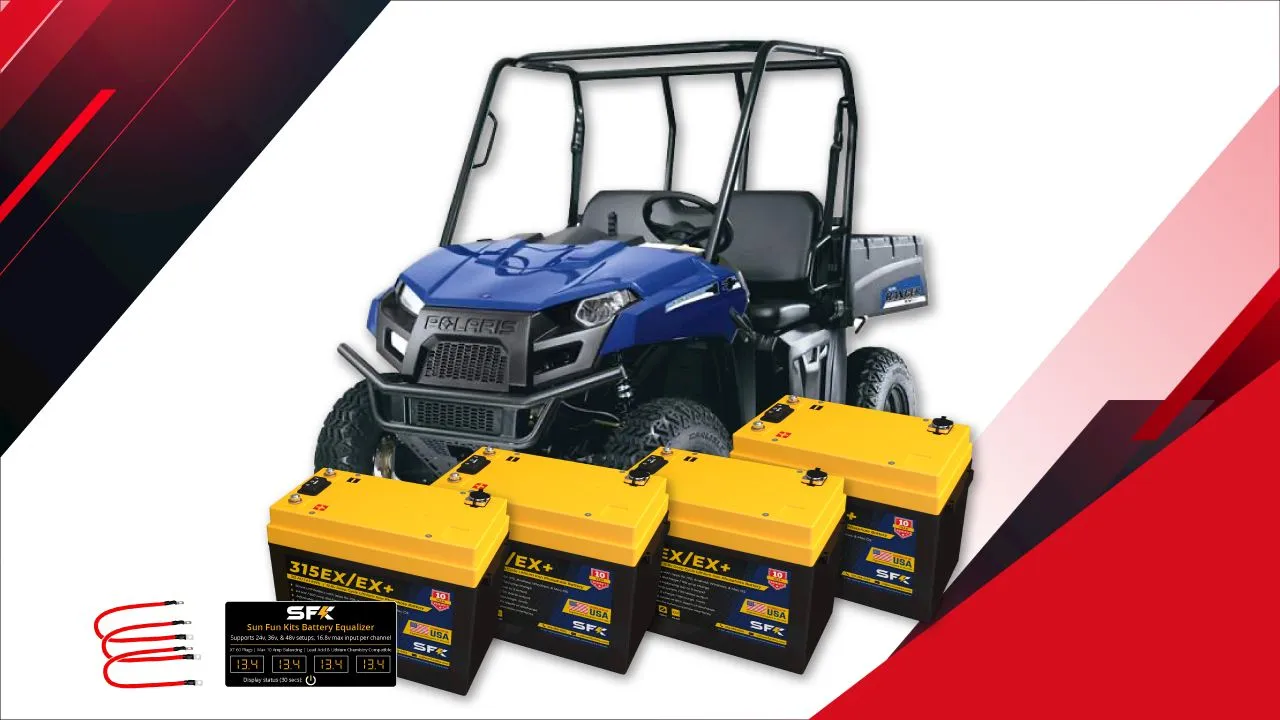

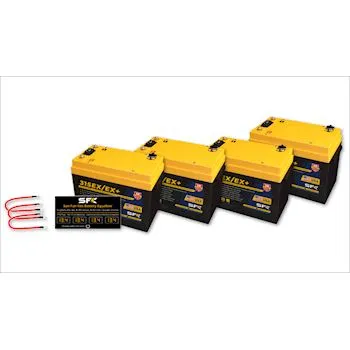

The kit includes 4x SFK315EX batteries, the SFK battery equalizer, 2/0 gauge series connecting cables, and 8 extended length mounting bots. The kit uses the stock battery trays and secures using the stock battery retention bracket. After the conversion you will be 400 lbs lighter than stock and will have 60% more usable range than stock.

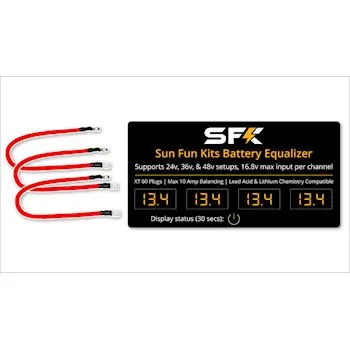

Using the SFK battery equalizer, you won’t have to worry about imbalanced batteries as the equalizer will ensure all batteries stay in unison. If you ever decide to sell your Ranger, you can use the 315EX batteries in a normal 12v based setup such as in an RV or back up power.

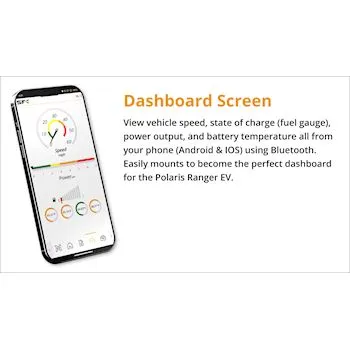

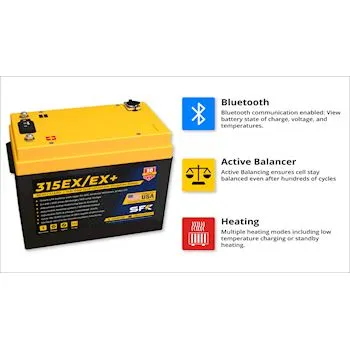

The batteries support heating (both during charging as well as standby heating which can keep them warm even when not charging), bluetooth communication, and have a user friendly app that will show you vehicle speed, state of charge (fuel gauge), vehicle power and battery temperature. The SFK315EX also support battery life extending features such as setting a power reserve cut-off (e.g. you can set the batteries to stop discharging when only 10% is left) or you can send a maximum charge level (such as setting it to 90% max charge) this means you can leave you batteries plugged in and not worry about degradation at high or low states of charge levels.

In terms of performance, you will have access to 14 kW (18 horsepower) peak and will easily reach the top speed of your vehicle (limited to 23mph as per federal regulations). You can drive up to 45 miles at full speed off a single charge (on paved terrain), with mixed speed driving you can expect between 55 - 65 miles.

Features

  • 16.4 kWh of reliable lithium power, replaces all 8 lead acid stock batteries and weighs 400 lbs less than the stock battery system with double the range.
  • 45 miles of range of aggressive driving (90% power level) or up to 70 miles of range in leisure driving (60% power level).
  • Up to 14 kW (18 horsepower) of peak power, and 7500 watts of continuous power.
  • 300 amp discharge capable, 145 amp continuous rating (can run 145 amps form 100% to 0% without hitting thermal cut-off limit).
  • GEN 2 B Switch allows Bluetooth to be turned on/off, full active balancer control, and can show battery temperature.
  • Expected cycle life of 8000 cycles at 80% DOD, and up to 11000 cycles at 50% DOD, 12-15 year usage life.
  • Fully compatible with existing Polaris Ranger EV architecture including standard 48v lead acid on board charger.
  • Built-in cell heaters to allow for low temperature charging, temperature to activate heaters can be set inside the app, users can also test heating via the app.
  • Triple Heating Modes! The only battery on the market that lets users select how the heating system works, select form automatic low temp charging heating, or use standby heating to keep the battery warm even when its idle, or you can disable heating altogether and use low temperature protection only.
  • User selectable Max/Min State of charge, you can set upper and lower state of charge limits on your battery, e.g. set a lower limit of 20%, once the battery reaches this limit discharging will become disabled. Alternatively you can set an upper limit to 80%, so now you can leave your rv/coach plugged in and your battery will not be stressed as it will stop charging at 80% there by extending it's life.
  • Data Port option for future expandability including wired options and add-on, required for future firmware updates.
  • Smart phone/device compatible with Bluetooth monitoring/configurable app. Available for IOS/Android.
  • Automatic low/high temperature and low/high voltage cut-off to stop battery damage from occurring.
  • Automatic short circuit prevention as well as over charge and over discharge prevention.

Recommended Uses

  • Use in electric ATV units that operate in the 48v range such as the Polaris Ranger EV
  • Use in other DC setups where a 48v dc supply is needed
  • Can be re-configured to run in 24v (2s-2P)
  • Can be re-configured to run as a large 12v power bank (4p)

Downloads

Properties

Canonical Reference true
Shipping Availability 1 Week
GTIN 00850036385349
Weight 285
Manufacturer Sun Fun Kits
SKU SFK-PREV-4
Freight Class 60
Hidden Product False
Hide Price False
Battery Specs
Chemistry LifePo4 (lithium Iron Phosphate)
Lithium Charger SFK-PS-400 Lithium Charger
Battery Cable Kit 175A HD Battery Cable
Sealant Add removable silicone sealant to lid.
Data Port RS485 Data Port
Certification Standard UL 1642 , UL 9540A
I/O Switch SFK GEN2 B Switch
Cycle Life 8000 at 80% DOD
Heating System Low Temp Charging Heating , Standby Heating (heating even when not charging)
Continuous Discharge (Watts) 7500
Cells 16
Battery Capacity (AH) 315
Voltage 51.2
Watt Hour Capacity (kWh) 16.4
Max Discharge (Amps) 300
Max Charge (Amps) 160
Construction Material ABS, Aluminum, PCB
Battery Weight (Lbs) 240
Balance Capacity (AH) 5200
Terminal Studs M8
Cable Specs
SFK Data Cable Sun Fun Kits RS-485 to USB-A Data Cable
Physical Specs
Item Weight 60.05 lbs , 27.24 Kg
Height 11.6 Inch , 290 MM , 10.6 Inch Without Terminal Screws
Width 180 MM , 7.5 Inch
Length 345 MM , 13.6 Inch , 14.6 Inch / 371 MM Including handles
General Information
Country of Origin USA , China
Service and Support Serviced, Repairs in USA
Warranty 8 Year 60/96 Month Warranty , 10 Year 60/120 Month Warranty (Dealer Installed)
