Home Battery kits Sun Fun Kits Hisun Sector E1 315 AH Lithium Conversion Kit - 16.4 kWh 51.2v 24HP Bluetooth & Heating

Sun Fun Kits Hisun Sector E1 315 AH Lithium Conversion Kit - 16.4 kWh 51.2v 24HP Bluetooth & Heating

SKU: SFK-HSE1-4

Stock Status: In Stock

Shipping Availability: 1 Week

Sun Fun Kits Hisun Sector E1 315 AH Lithium Conver
Sun Fun Kits Hisun Sector E1 315 AH Lithium Conver
Sun Fun Kits Hisun Sector E1 315 AH Lithium Conver
Sun Fun Kits Hisun Sector E1 315 AH Lithium Conver
Sun Fun Kits Hisun Sector E1 315 AH Lithium Conver
Sun Fun Kits Hisun Sector E1 315 AH Lithium Conver

Summary

The only purpose built lithium conversion for the Hisun E1! 75 miles of range, purpose built trays, 24 horse power, 360 lbs. lighter, fully working regen in below freezing conditions, 350 amps available for the built-in winch, and by far the easiest kit to install. Watch our videos and you'll be convinced!

Battery Weight (Lbs)

Battery Weight (Lbs)

240
Max Discharge (Amps)

Max Discharge (Amps)

350
Battery Capacity (AH)

Battery Capacity (AH)

315
Voltage

Voltage

51.2
Cycle Life

Cycle Life

8000 at 80% DOD
Data Port

Data Port

RS485 Data Port
Heating System

Heating System

Auto & Manual
Peak Output Power (kW)

Peak Output Power (kW)

18000
Max Horsepower

Max Horsepower

24

Battery Equalizer

Equalizing System

Equalizing System

Select between equalizer or 4 port charger, used to keep your SFK batteries in balance.

Highly recommended for people in cold weather that use standby heating routinely or wish to use one of the batteries to supply 12v to a winch or snow plow. Profile 233 is recommended on the Delta-Q IC1200 charger. Also works well with the standard 18 amp charger (2023 and newer E1 Models).

4 Port Supplemental Charger
4 Port Supplemental Charger
4 Port Supplemental Charger

Works well for most users and is budget friendly. Delta Q Profile 386 on the IC 1200 charger is recommended with the equalizer.

Battery Equalizer

Battery Upgrades

Data Port

Data Port

Upgrades all 4 batteries with data ports for firmware upgrades and new wired devices such as the SFK Sports Hub.

Add RS485 Data Port
Add RS485 Data Port
Add RS485 Data Port
Add RS485 Data Port

Summary

Base Price

$4,150.00

Battery Equalizer

Equalizing System: 4 Port Supplemental Charger

$125.00

Price w/ Options

$4,275.00

Description

The first bespoke lithium conversion kit specifically designed for the HiSun Sector E1 UTV on the market is available now! The Sun Fun Kits E1 conversion is fast, easy to install, and looks OEM and it can be installed in as little as 2 hours. The kit includes everything you need to get up and running including custom battery mounting trays, cables, equalizer and four of the 315EX batteries. The Hisun E1’s onboard Delta-Q charger can easily be programmed for lithium operation via an update with a USB drive so you will native lithium charging capability from the get go.

Lead Acid Test Drive: 0:00

Replacing Lead Acid Batteries: 4:43

SFK Custom Battery Plates: 11:18

Installing SFK315EX Batteries: 15:51

Installing Battery Wires: 20:18

Installing SFK Equalizer: 34:48

Setup Charger with Lithium Profile: 37:27

Test Charge, Verifying 100% Charge: 44:04

Lithium Test Drive: 47:05

Off-road Test Drive: 50:05

hisun-facebook-post-1
hisun-facebook-post-2
hisun-facebook-post-3
hisun-facebook-post-4
hisun-facebook-post-5

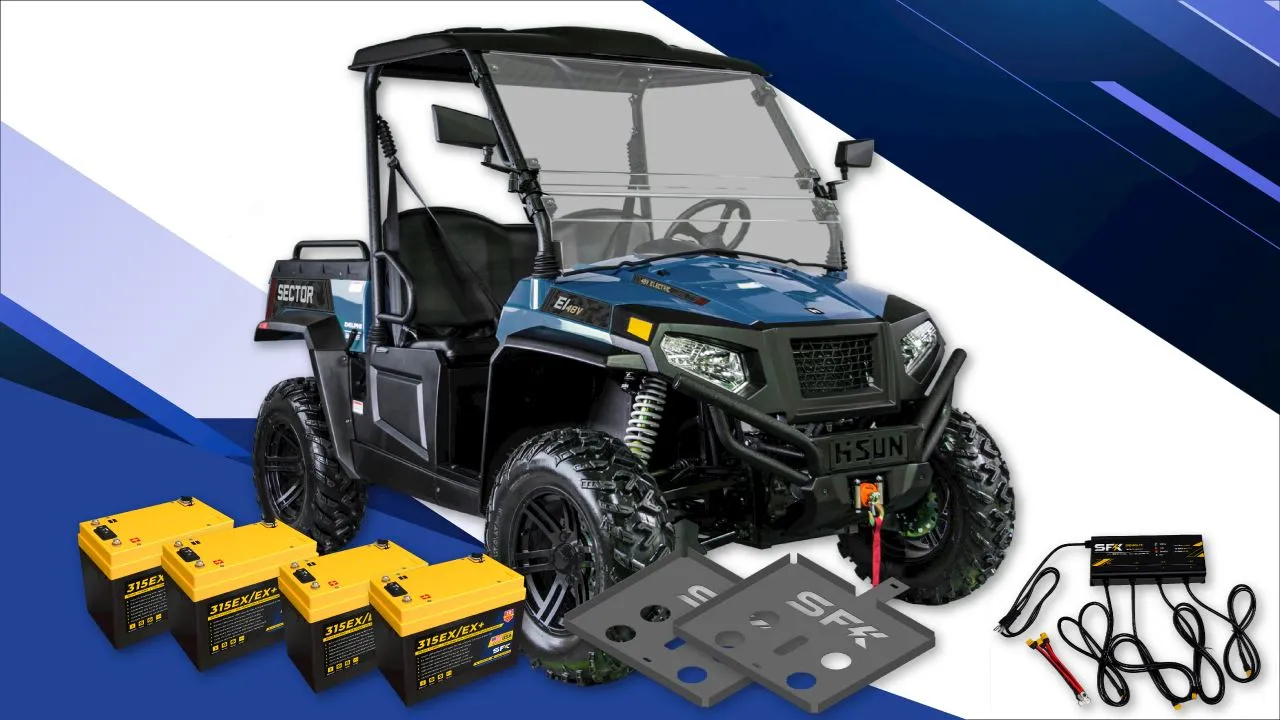

The kit includes 4x SFK315EX batteries, the SFK battery equalizer, 2/0 gauge series connecting cables, and 2 custom made battery mounting plates. After the conversion you will be 360 lbs lighter than stock and will have 60% more usable range than stock, a real world 60-75 miles of range.

Using the SFK battery equalizer, you won’t have to worry about imbalanced batteries as the equalizer will ensure all batteries stay in unison. If you ever decide to sell your Ranger, you can use the 315EX batteries in a normal 12v based setup such as in an RV, boat, or back up power.

The batteries support heating (both during charging as well as standby heating which can keep them warm even when not charging so you will not have regen issues when operating in below freezing conditions), bluetooth communication, and have a user friendly app that will show you vehicle speed, state of charge (fuel gauge), vehicle power and battery temperature. The SFK315EX also support battery life extending features such as setting a power reserve cut-off (e.g. you can set the batteries to stop discharging when only 10% is left) or you can send a maximum charge level (such as setting it to 90% max charge) this means you can leave you batteries plugged in and not worry about degradation at high or low states of charge levels.

In terms of performance, you will have access to 18 kW (24 horsepower) peak for up to 50 seconds and will easily reach the top speed of your vehicle (limited to 25 mph as per federal regulations). You can drive up to 60 miles at full speed off a single charge (on paved terrain), with mixed speed driving you can expect between 60 - 75 miles.

Features

  • 16.4 kWh of reliable lithium power, replaces all 8 lead acid stock batteries and weighs 360 lbs less than the stock battery system with double the range.
  • 60 miles of range of aggressive driving (90% power level) or up to 75 miles of range in leisure driving (60% power level).
  • Up to 18 kW (24 horsepower) of peak power, and 7.5 kW of continuous power.
  • 350 amp discharge capable, 145 amp continuous rating (can run 145 amps form 100% to 0% without hitting thermal cut-off limit).
  • GEN 2 B Switch allows Bluetooth to be turned on/off, full active balancer control, and can show battery temperature.
  • Expected cycle life of 8000 cycles at 80% DOD, and up to 11000 cycles at 50% DOD, 12-15 year usage life.
  • Fully compatible with existing Hisun Sector E1 architecture including onboard Delta-Q IC 650 charger (can be updated to Lithium profile).
  • Built-in cell heaters to allow for low temperature charging, temperature to activate heaters can be set inside the app, users can also test heating via the app.
  • Triple Heating Modes! The only battery on the market that lets users select how the heating system works, select form automatic low temp charging heating, or use standby heating to keep the battery warm even when its idle, or you can disable heating altogether and use low temperature protection only.
  • User selectable Max/Min State of charge, you can set upper and lower state of charge limits on your battery, e.g. set a lower limit of 20%, once the battery reaches this limit discharging will become disabled. Alternatively you can set an upper limit to 80%, so now you can leave your rv/coach plugged in and your battery will not be stressed as it will stop charging at 80% there by extending it's life.
  • Data Port option for future expandability including wired options and add-on, required for future firmware updates.
  • Smart phone/device compatible with Bluetooth monitoring/configurable app. Available for IOS/Android.
  • Automatic low/high temperature and low/high voltage cut-off to stop battery damage from occurring.
  • Automatic short circuit prevention as well as over charge and over discharge prevention.

Recommended Uses

  • Use in electric ATV units that operate in the 48v range such as the Hisun Sector E1
  • Use in other DC setups where a 48v dc supply is needed
  • Can be re-configured to run in 24v (2s-2P)
  • Can be re-configured to run as a large 12v power bank (4p)

Downloads

SFK315EX-Manual-Revision 1.6. January 2026

Properties

Shipping Availability 1 Week
Manufacturer Sun Fun Kits
SKU SFK-HSE1-4
NMFC Code SFK-HSE1-4
Freight Class 60
Battery Specs
Chemistry LifePo4 (lithium Iron Phosphate)
Data Port RS485 Data Port
Certification Standard UL 1642 , UL 9540A
Cycle Life 8000 at 80% DOD
Heating System Auto & Manual
Continuous Discharge (Amps) 200
Max Horsepower 24
Peak Output Power (kW) 18000
Delta-Q Reprogramming Setup Lithium Profile on my Charger.
Continuous Discharge (Watts) 7500
Cells 16
Battery Capacity (AH) 315
Voltage 51.2
Watt Hour Capacity (kWh) 16.4
Max Discharge (Amps) 350
Max Charge (Amps) 160
Construction Material ABS, Aluminum, PCB
Battery Weight (Lbs) 240
Balance Capacity (AH) 5200
Terminal Bolts M8
Physical Specs
Item Weight 60.05 lbs , 27.24 Kg
Height 11.6 Inch , 290 MM , 10.6 Inch Without Terminal Screws
Width 180 MM , 7.5 Inch
Length 345 MM , 13.6 Inch , 14.6 Inch / 371 MM Including handles
Kit Configurator
Equalizing System 4 Port Supplemental Charger , Battery Equalizer
General Information
Country of Origin USA , China
Service and Support Serviced, Repairs in USA
Warranty 8 Year 60/96 Month Warranty , 10 Year 60/120 Month Warranty (Dealer Installed)
