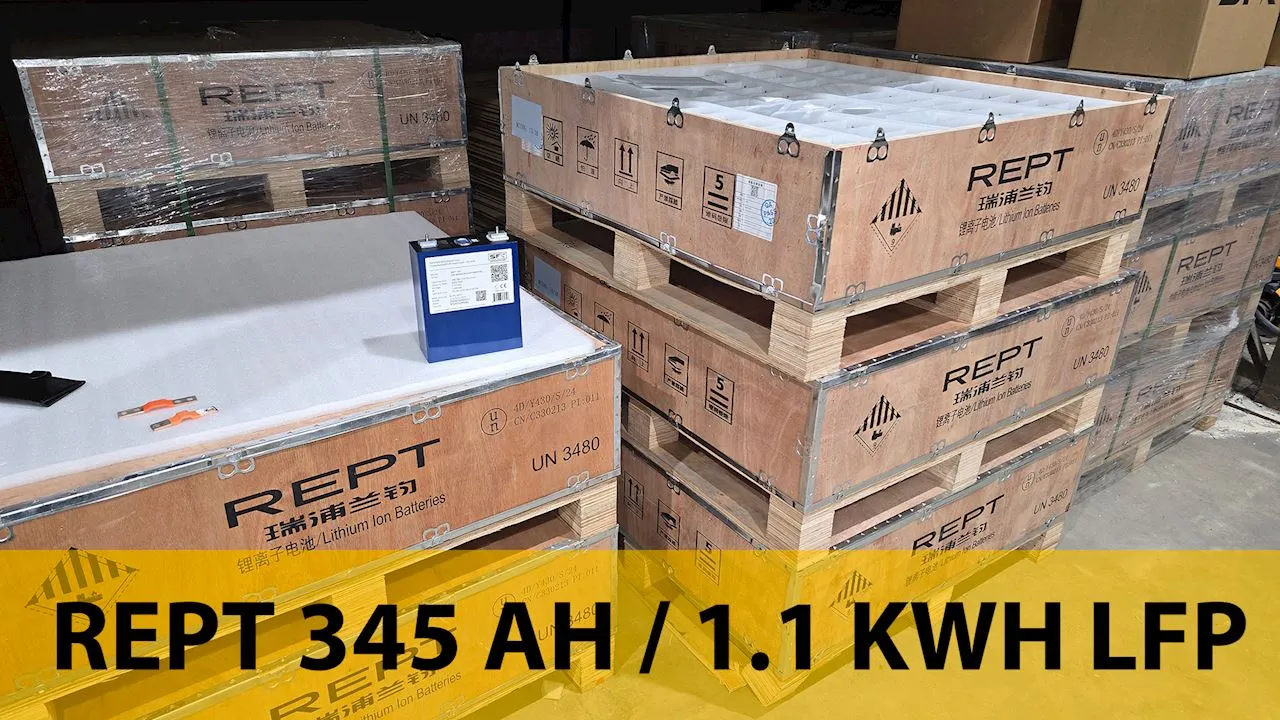

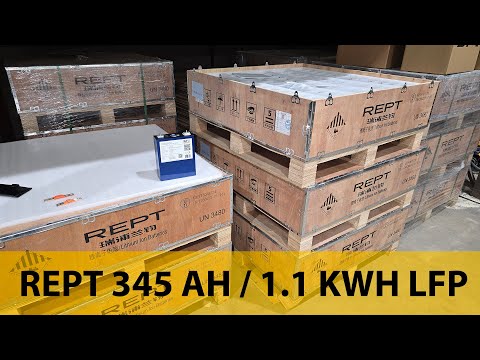

65 cell pallet Ruipi Rept 345AH 3.2v Lithium Iron Phosphate - Baton Rouge Warehouse.

Brand:
REPT
SKU:
SFK-REPT345-FPL
Return Policy:
30 Days Returnable -10 ( Restocking Fee : 10.00% )
Shipping Availability:
1 to 2 Days
Stock Status:
In Stock
Cell Capacity (AH)

Cell Capacity (AH)

345
Max Discharge (Amps)

Max Discharge (Amps)

100
Voltage

Voltage

3.2
Accessories

Cell Separator:
Cell Separator

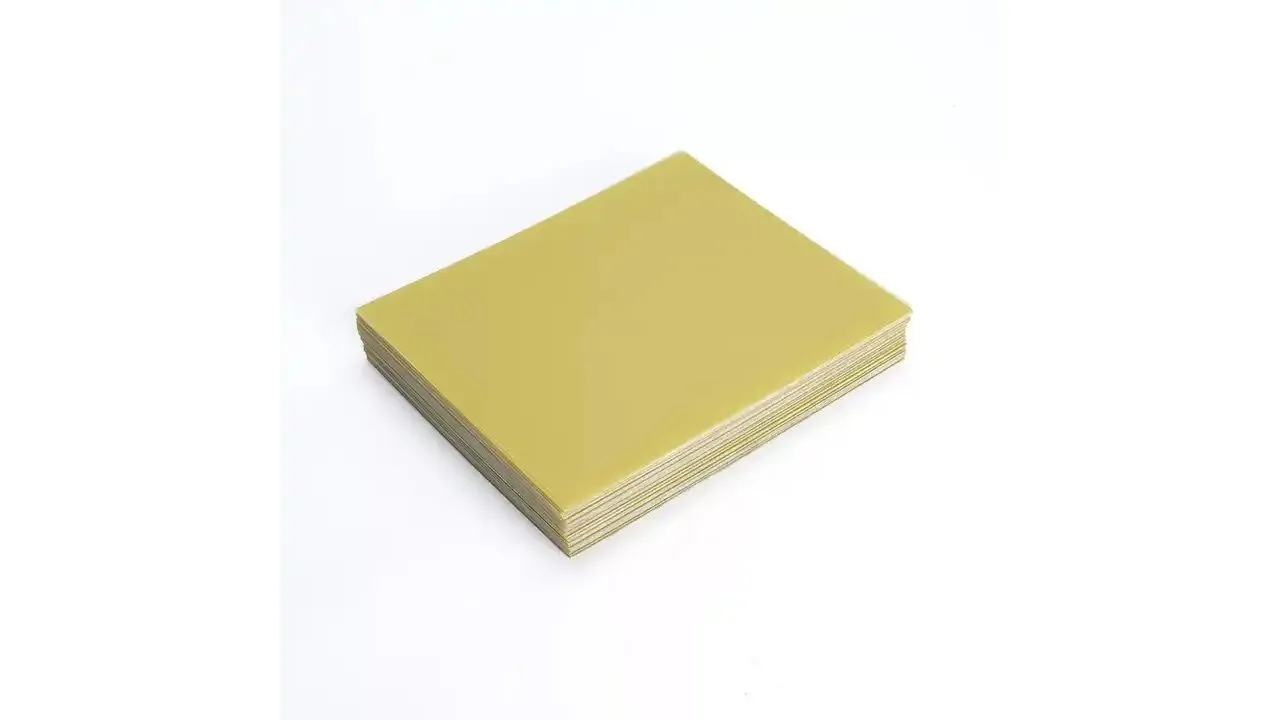

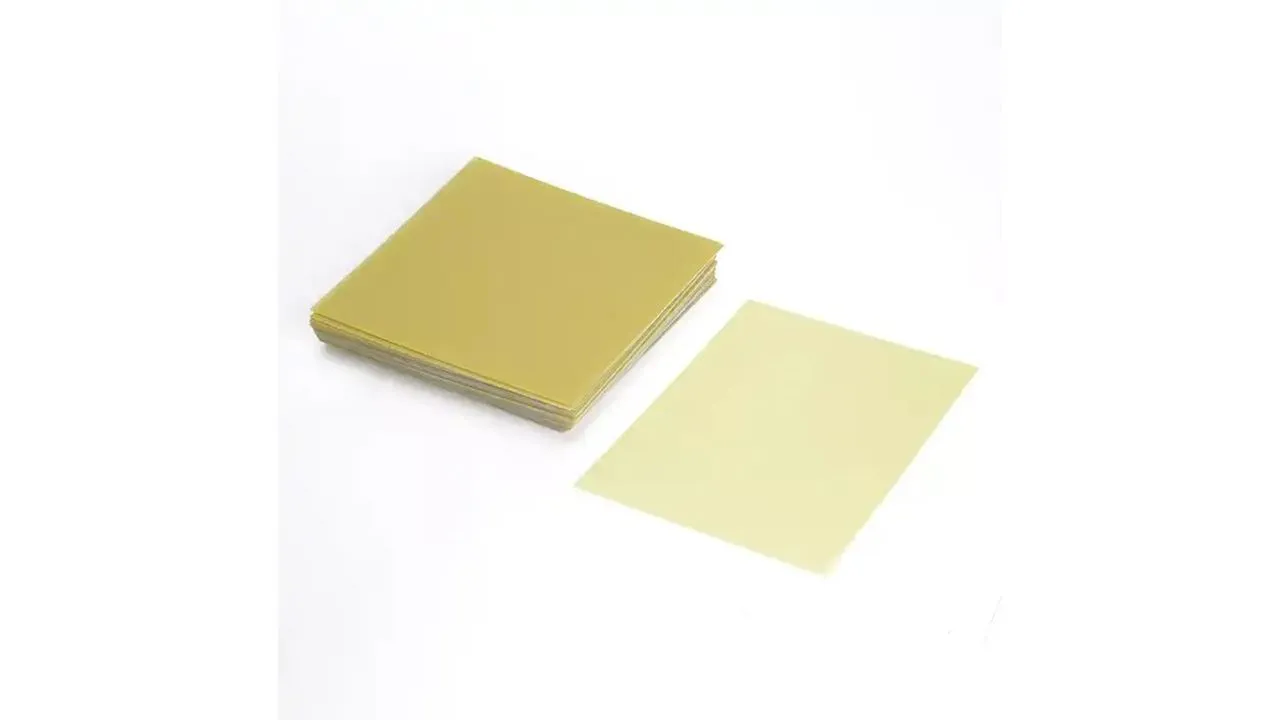

Fiberglass separator sheets, select from .5mm to 1.5mm thickness
Cell Bus Bar:
Cell Bus Bar

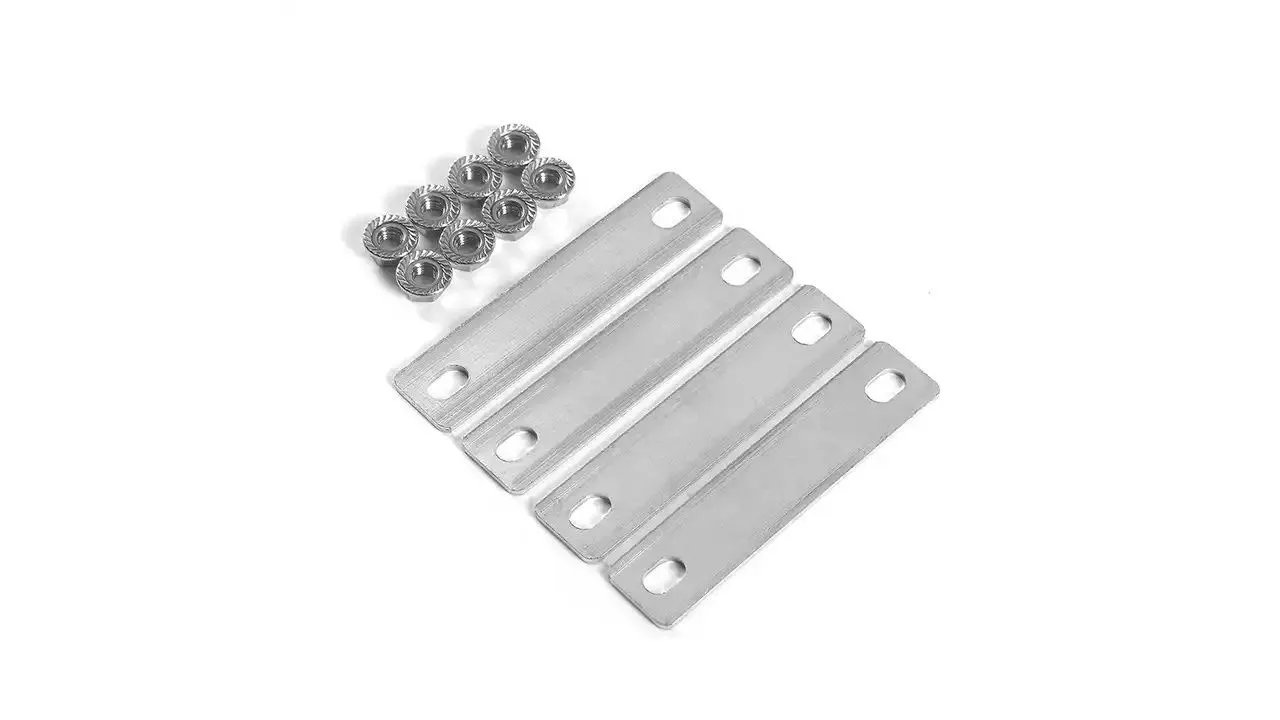

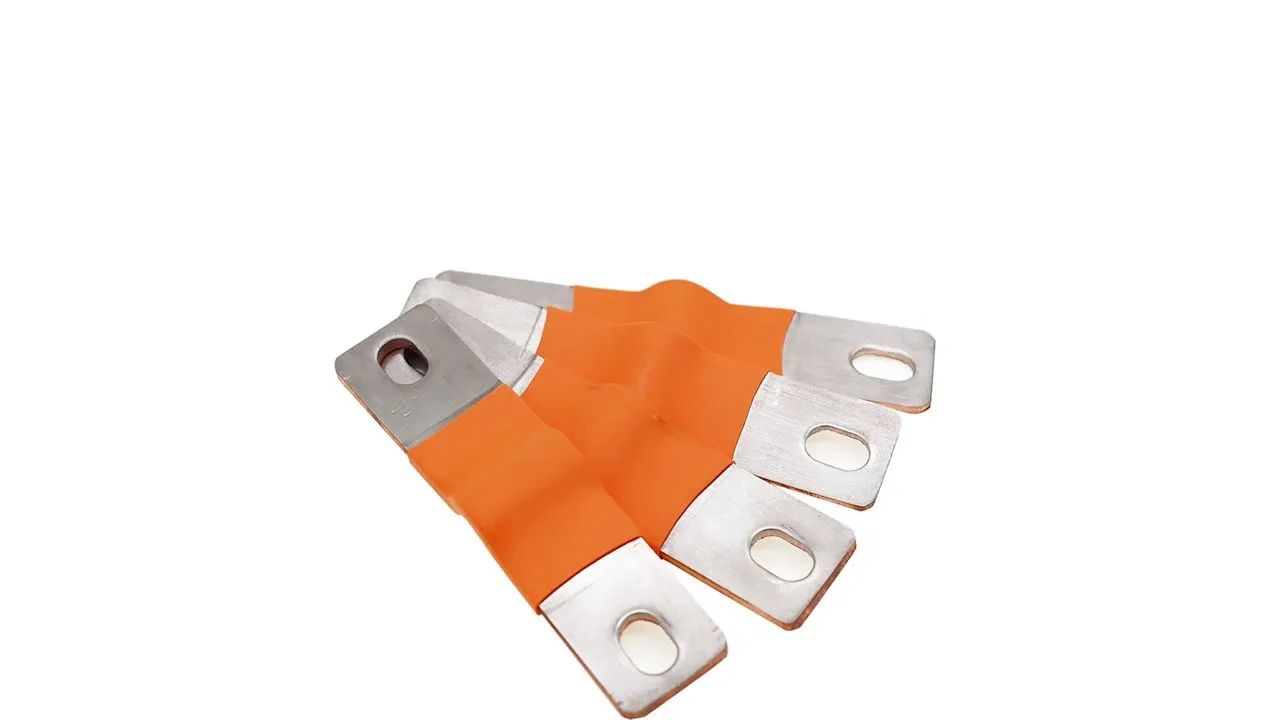

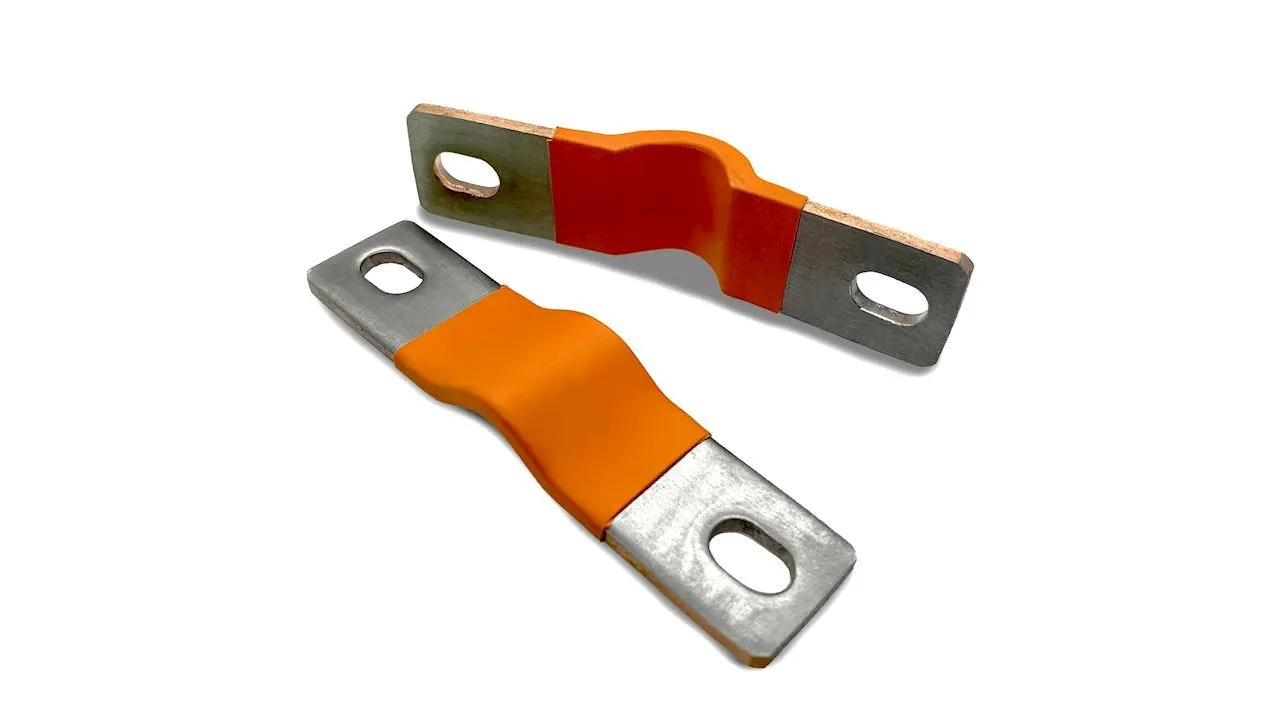

Both types of bus bars are capable of 250A.
Our Regular Price: $6,500.00
Configuration Price: $6,525.00
Qty:
Description

65 official RUIPI REPT cell pallet Grade A (with full manufacturer test report)  certified REPT 345AH cells! Shipping is available to the mainland USA & Canada only! RUIPI REPT 345 AH cells are the most energy dense cells on the market and can be used in various applications from  backup power, energy storage, lite electric rail, and other uses where reliable DC power is needed.  These cells are certified by the manufacture and have been individually tested and matched for use in battery builds, projects, and other projects requiring reliable DC power. Each cells lists is manufacturer test capacity at the time of cell construction, the Internal Resistance as well as resting voltage before and after the test. Sun Fun Kits provides a 2 year warranty on each cell (12 months full replacement, and 12 months of pro-rated).



Please note: These batteries will require balancing and matching before they can be used in a battery pack, buyers of loose cells should be aware of the technical expertise needed to assemble a battery pack. We also recommend the use of supplemental resistance and or active balancers to ensure cells have equal charge. ​All batteries have been load & capacity tested to ensure they meet manufacturer specifications of 345 AH (+/- 5 AH) and will have between 350 AH to 360 AH of available capacity while under a .2C discharge load at STP at 3.2v nominal. The RUIPI REPT 345AH variant is offered with a laser welded stainless steel studs on an  aluminum base and is rated for 280 amp continuous and 350 amp burst (5 seconds), however the max discharge for the REP 345 should be limited to 100 amps.



This listing if for the official RUIPI REPT pallet with the 345AH cells and it is shipped directly to your location or a freight carrier hub near you.   Arrival time is between 4-8 days, you may also choose to pick these up directly form our warehouse or have them shipped via your own carrier at no additional charges.

Properties
Shipping Availability 1 to 2 Days
GTIN 00850036385158
HS Tariff Code 8507
Manufacturer REPT
SKU SFK-REPT345-FPL
Battery Specs
Chemistry LifePo4 (lithium Iron Phosphate)
Cell Bus Bar Rigid Copper Nickle Plated Bus Bars (2.00 mm) , Flexible Multi-Layer Copper with Nickle Outer Layers (2.2 mm)
Certification Standard UL 1642 , UL1973 , UL9540A
Continuous Discharge (Watts) 275
Cells 65
Voltage 3.2
Cell Capacity (AH) 345
Max Discharge (Amps) 100
Max Charge (Amps) 100
Construction Material Aluminum, ABS
Battery Weight (Lbs) 12
Terminal Studs M6 , Steel Welded , SFK-V2P Adapter
Physical Specs
Max Cell Height 204 MM
Item Weight 5.5 KG
Height 200 MM , 206mm
Width 72 MM
Length 174 MM
General Information
Warehouse Location Baton Rouge - Louisiana - USA
Country of Origin China
Service and Support USA through Sun Fun Kits
Warranty 2 Year 12/24 , Sun Fun Kits USA Warranty
Kit Configurator
Cell Separator 0.5 , 1.0 , 1.5
