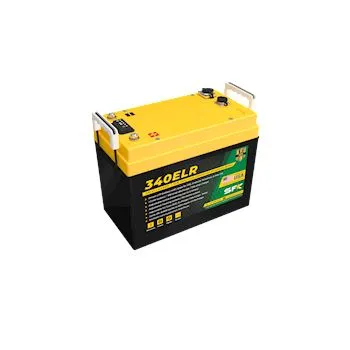

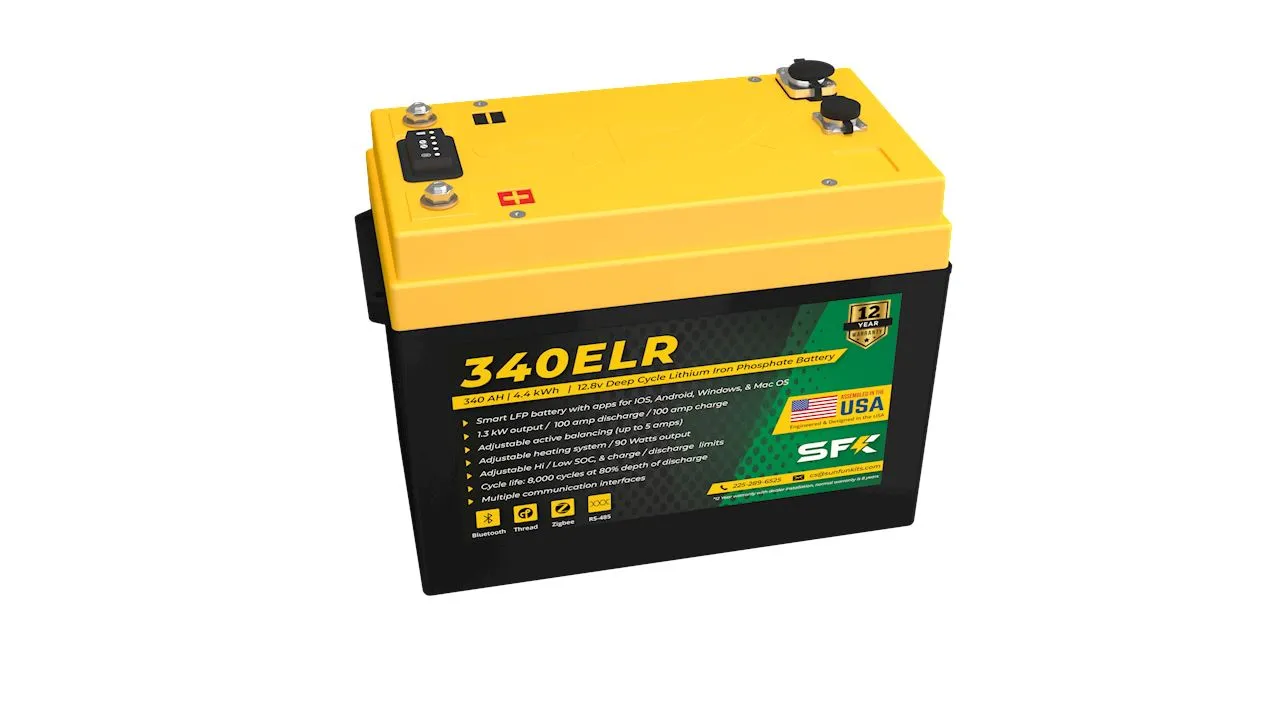

When you need capacity above all else the 340ELR is your battery of choice. Using REPT 345 cells that test well into the mid 350AH, the 340ELR sets the bar for most capacity in its class. Featuring our latest network card that adds support for Zigbee & Thread, Bluetooth 5, and a FCC certified ESP32 MCU, the 340ELR includes all the SFK enhancements such as Enhanced Victron communications, triple heating modes (low temp, standby, or Venus OS/Victron controlled) with new hardware I/O with a waterproof usb-c port and more app features than any of the SFK batteries preceding it.
The 340ELR is an endurance battery that emphasizes capacity over everything else giving you the most energy dense battery in its class. With over 340 Ah / 4.4 kWh of capacity and rated for 8000 cycles, this battery is ready for the long haul and is the battery of choice when you are looking to set up large battery banks for your RV, boat, or home power back up. Like the 315EX battery, it features built-in heating elements for low temperature charging, a 200A bms, support for 4s series (48v) connections, an easy to use smart app, and SFK enhanced Victron communication.
The 340ELR is one of the very few batteries on the market that can be connected in series up to 48V while also including functionality to allow for low temperature self heating. You can also parallel your batteries with up to 4 units (bus bars are needed to ensure proper balancing).
The lightest battery in it's class at only 62.00 lbs, while also having the smallest possible footprint.
Bespoke Construction using purpose built casings, not generic space wasting molds common form many Asian brands.

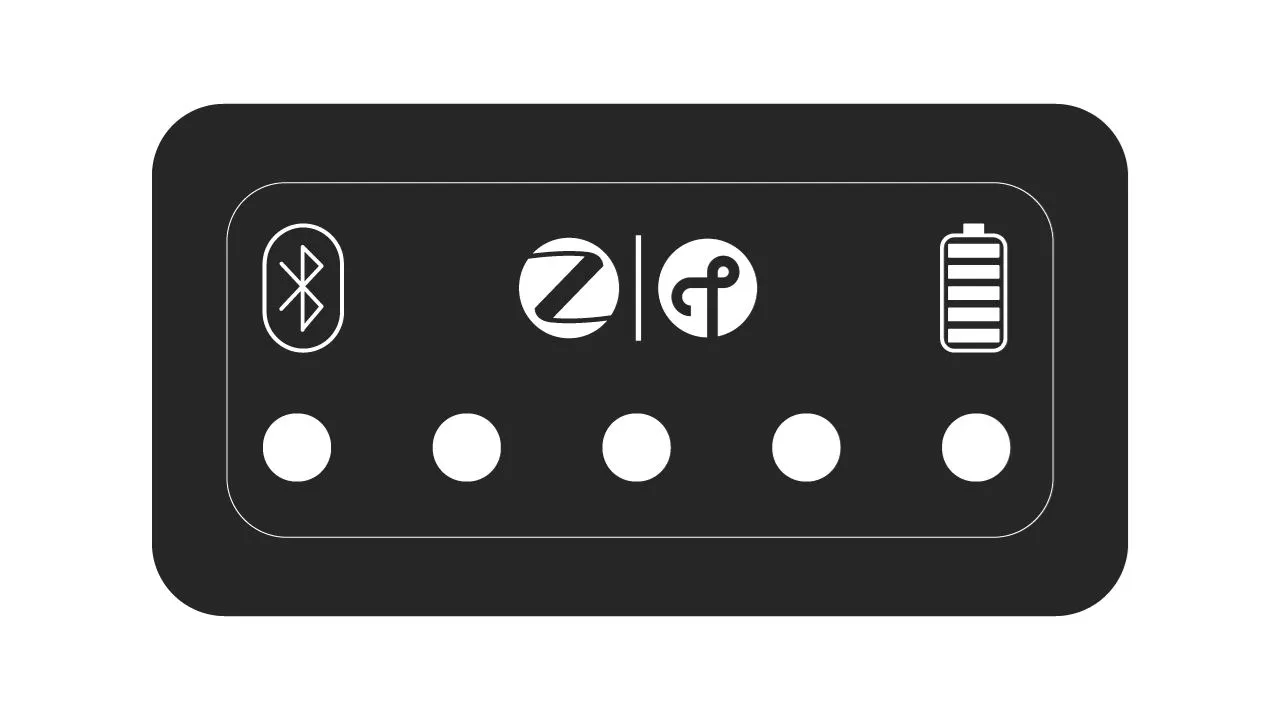

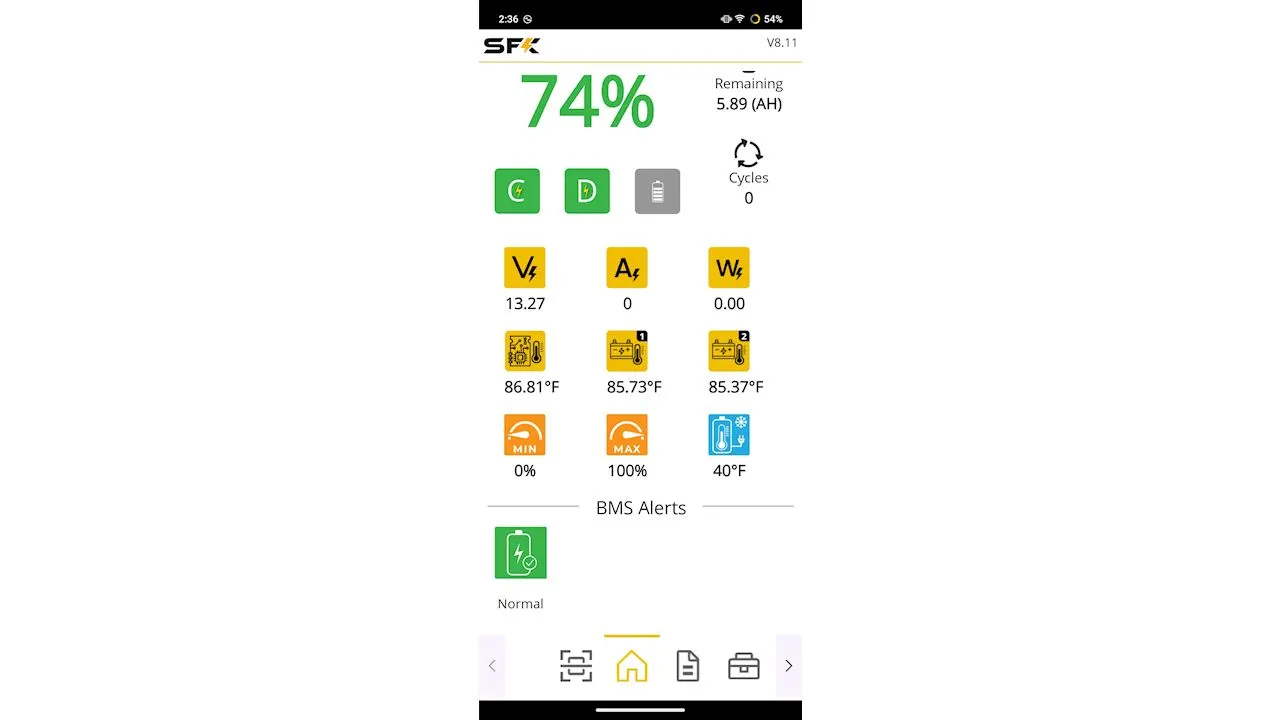

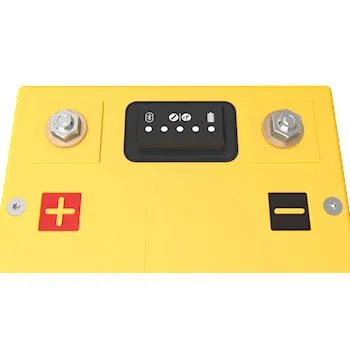

The 340ELR features our latest BMS system based on the ESP32-H2 mcu and it includes the gen 3 I/O switch which greatly enhances user interactivity. Users can now select between Bluetooth (ble), Zigbee, or Thread protocols; they can also see battery SOC and view charge status as the battery charges. Options for disabling discharge/charge as well as battery restart have also been added to the gen 3 I/O switch.

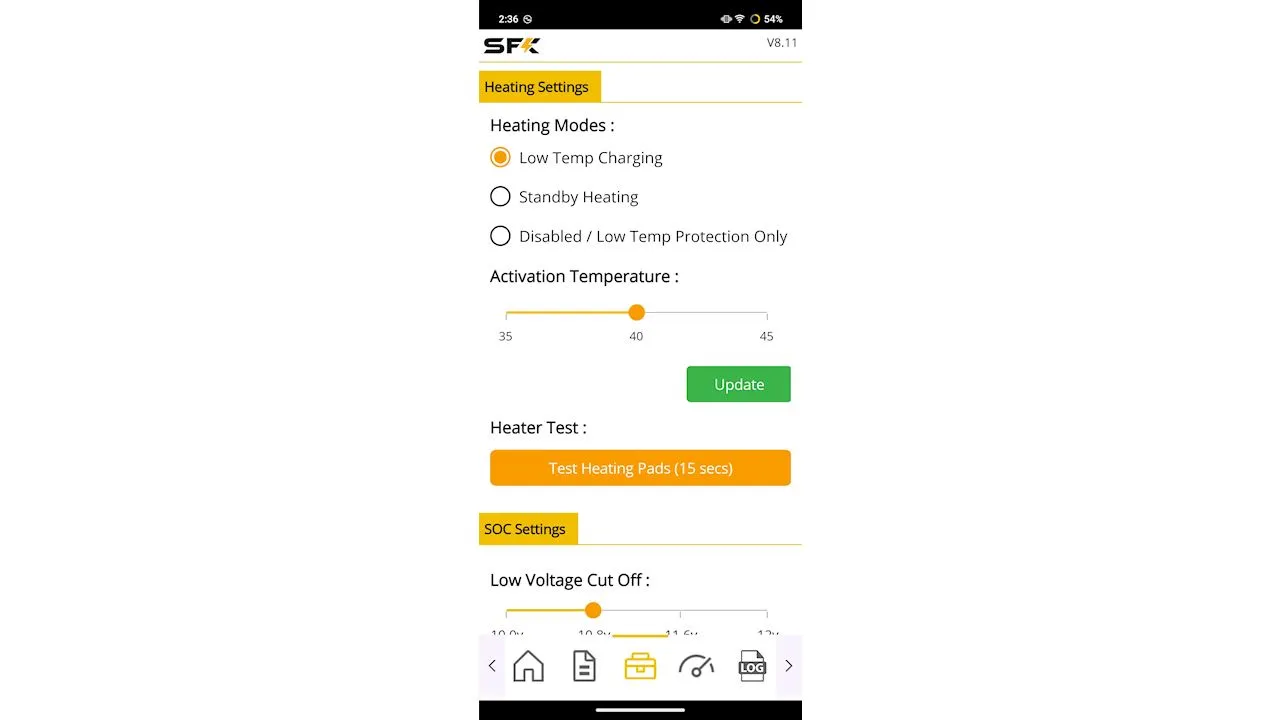

The 340ELR increases user customization and capability greatly over previous batteries. Active balancing has been expanded to allow customers to select activation voltage as well as the deviation voltage giving absolute control over the balancing system, users can also disable it if they wish. The system now has a real time clock and keeps track of additional battery details such as the days since the battery was last fully charged, it also includes 8 new logging parameters which provide users with battery usage history. Soc management has been expanded giving users the option to regulate high SOC, a system that will automatically use built-in heating to self discharge a battery to lower its SOC. Charge Pulse ensures that chargers see a viable voltage for batteries that have triggered low soc limit so users don’t get stuck if a charger refuses to charge a low soc battery.
The 340ELR is hand built by Sun Fun Kits technicians in Baton Rouge, Louisiana and is built to order. This battery uses components from the United States, China and India and has gone through a complete balance, capacity and load test to ensure it is built to industry standards. Your battery comes ready to use and we recommend you review the user guide on how to get the optimum performance and longevity of your unit.
Built with UL1973 & UL9540A certified cells with complete individual cell level manufacturer test reports, you will love the reliability of certified cells that will stay in balance, hold voltage during heavy loads, and also have the power to output up to 2,000 watts to power up even the most demanding of devices. Our onboard 5 amp active balancer ensures cells stay in balance even after hundreds of cycles.
| Shipping Availability | 2 to 3 Days |
| GTIN | 850036385363 |
| Manufacturer | Sun Fun Kits |
| SKU | 340ELR |
| Freight Class | 60 |
| Battery Specs | |
| Chemistry | LifePo4 (lithium Iron Phosphate) |
| Data Port | RS-485 Port , USB-C Port |
| Certification Standard | UL 1642 , UL 9540A |
| Heating System | Auto & Manual , Victron Controlled |
| Cycle Life | 8000 at 80% DOD |
| Peak Output Power (kW) | 2.0 |
| Continuous Discharge (Amps) | 125 |
| Recommended Discharge (Watts) | 800 |
| Max Horsepower | 2.67 |
| Cold Cranking Amps (CCA) | 360 |
| Continuous Discharge (Watts) | 1200 |
| Cells | 4 |
| Battery Capacity (AH) | 340 |
| Voltage | 12.8 , 13.0 , 13.6 |
| Watt Hour Capacity (kWh) | 4.4 |
| Max Discharge (Amps) | 160 |
| Max Charge (Amps) | 120 |
| Construction Material | ABS, Aluminum, PCB |
| Battery Weight (Lbs) | 62 |
| Balance Capacity (AH) | 5200 |
| Terminal Bolts | M8 |
| Physical Specs | |
| Item Weight | 61.00 Lbs , 62.00 Lbs , 27.75 KG |
| Height | 11.6 Inch , 290 MM , 10.6 Inch Without Terminal Screws |
| Width | 180 MM , 7.5 Inch |
| Length | 345 MM , 13.6 Inch , 14.6 Inch / 371 MM Including handles |
| General Information | |
| Menu Display Name | 340ELR |
| Country of Origin | USA , China |
| Service and Support | Serviced, Repairs in USA |
| Warranty | 8 Year 60/96 Month Warranty , 12 Year 60/144 Month Warranty (Dealer Installed) |
