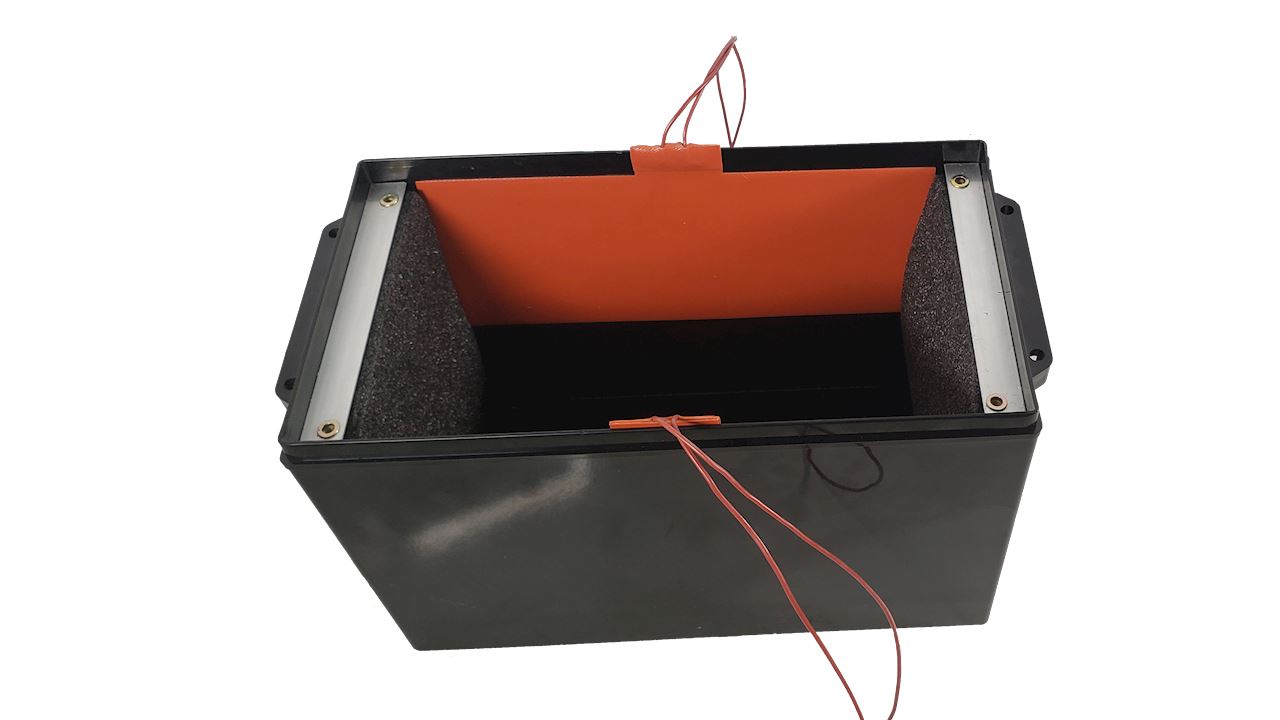

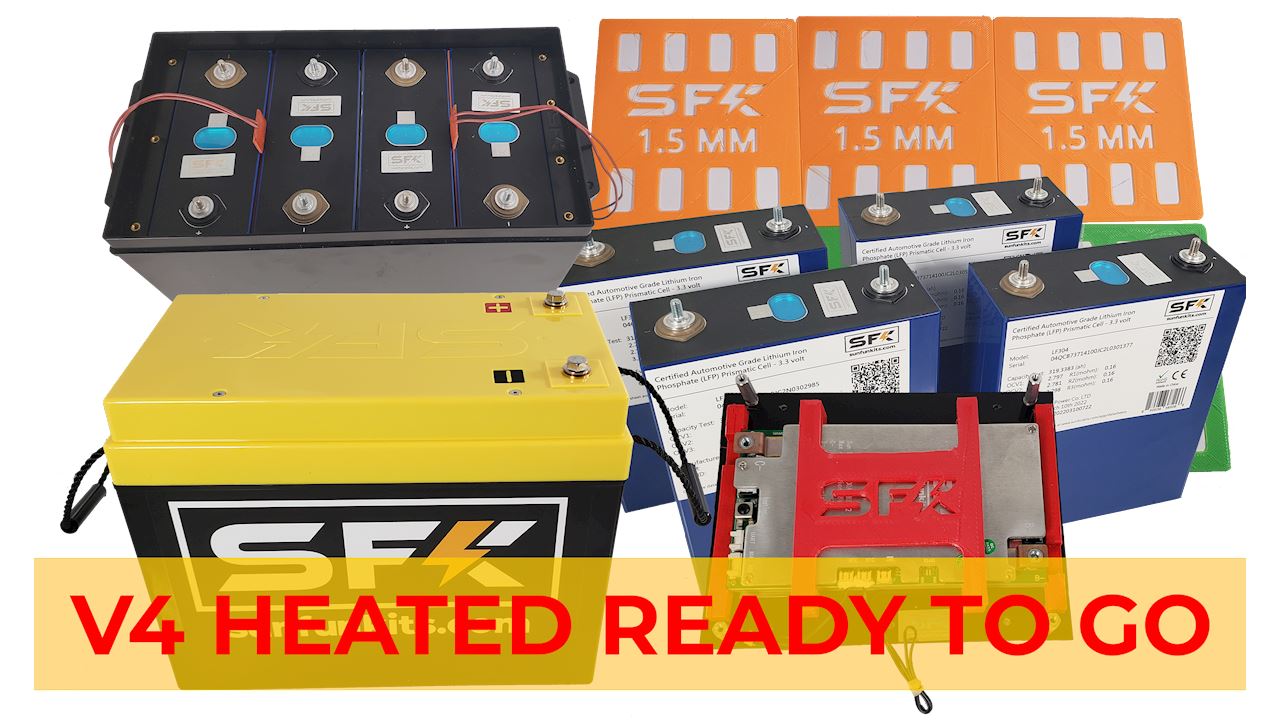

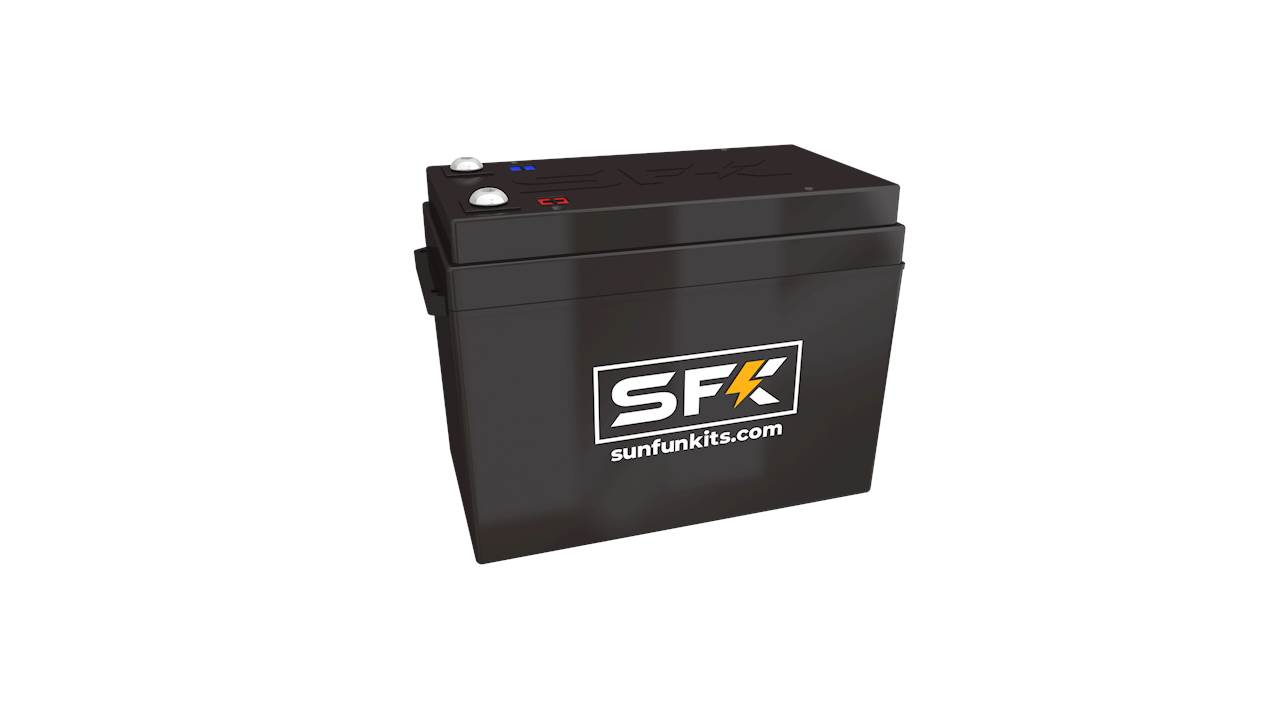

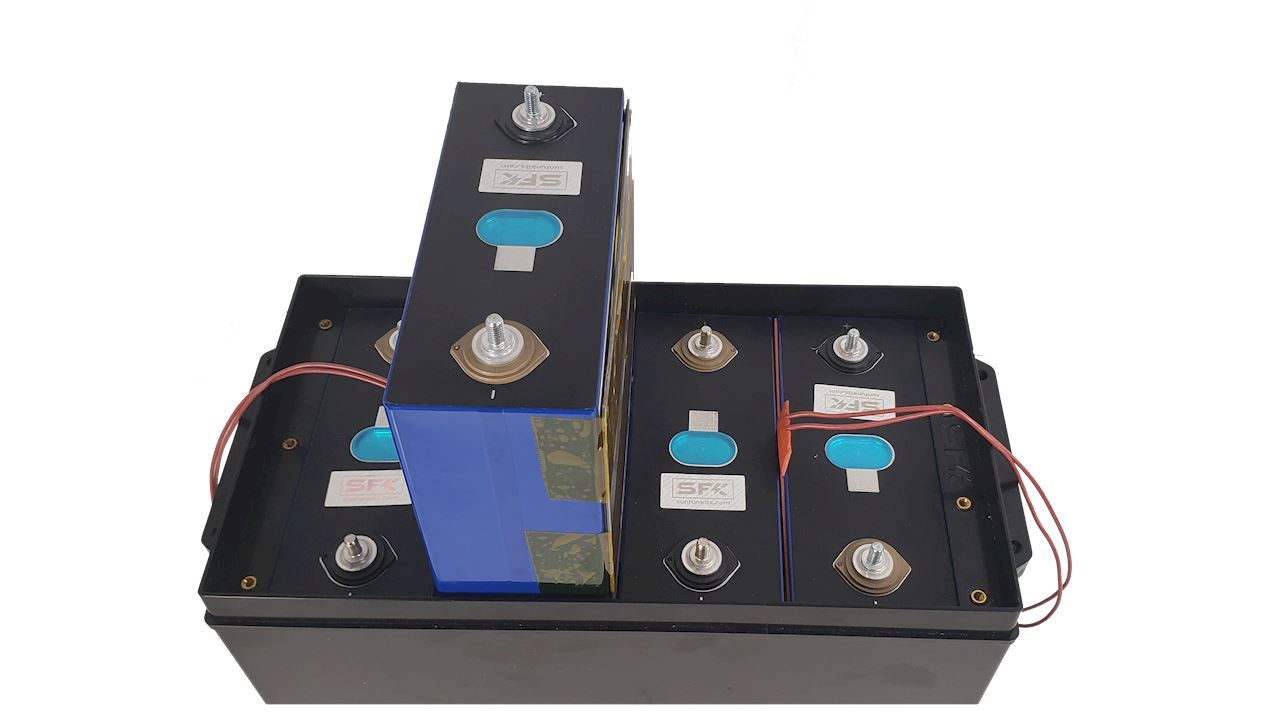

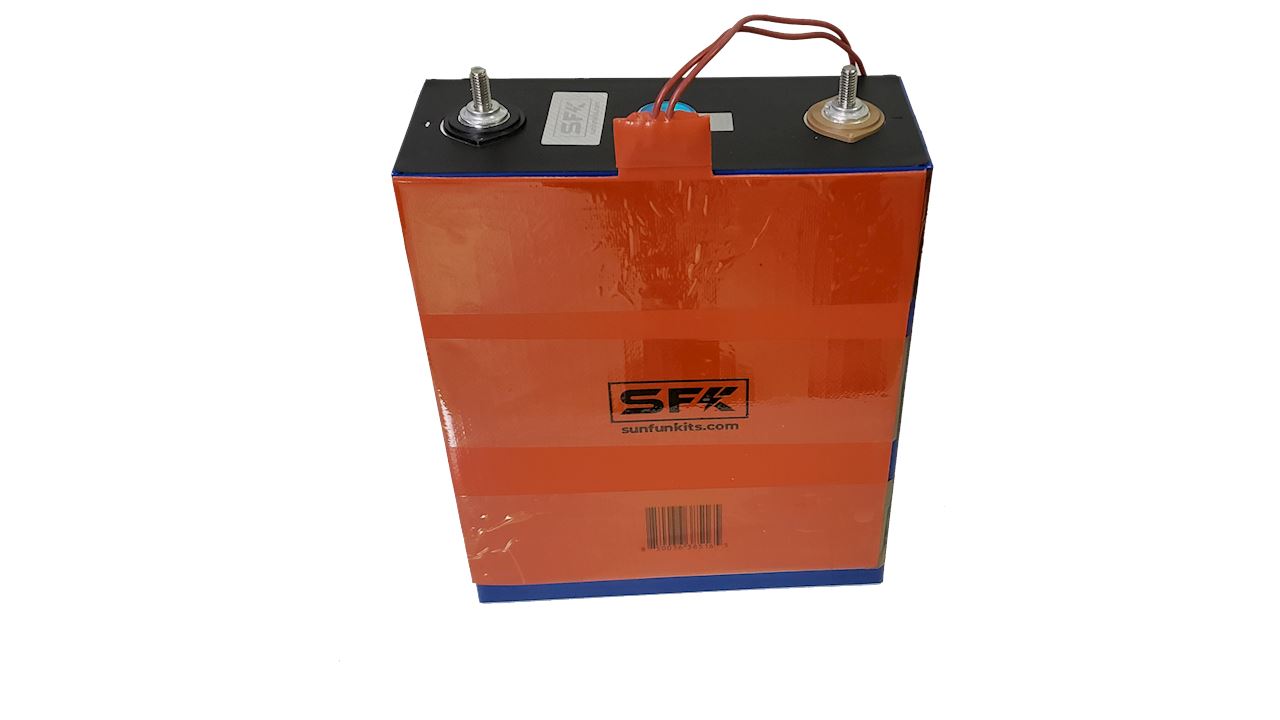

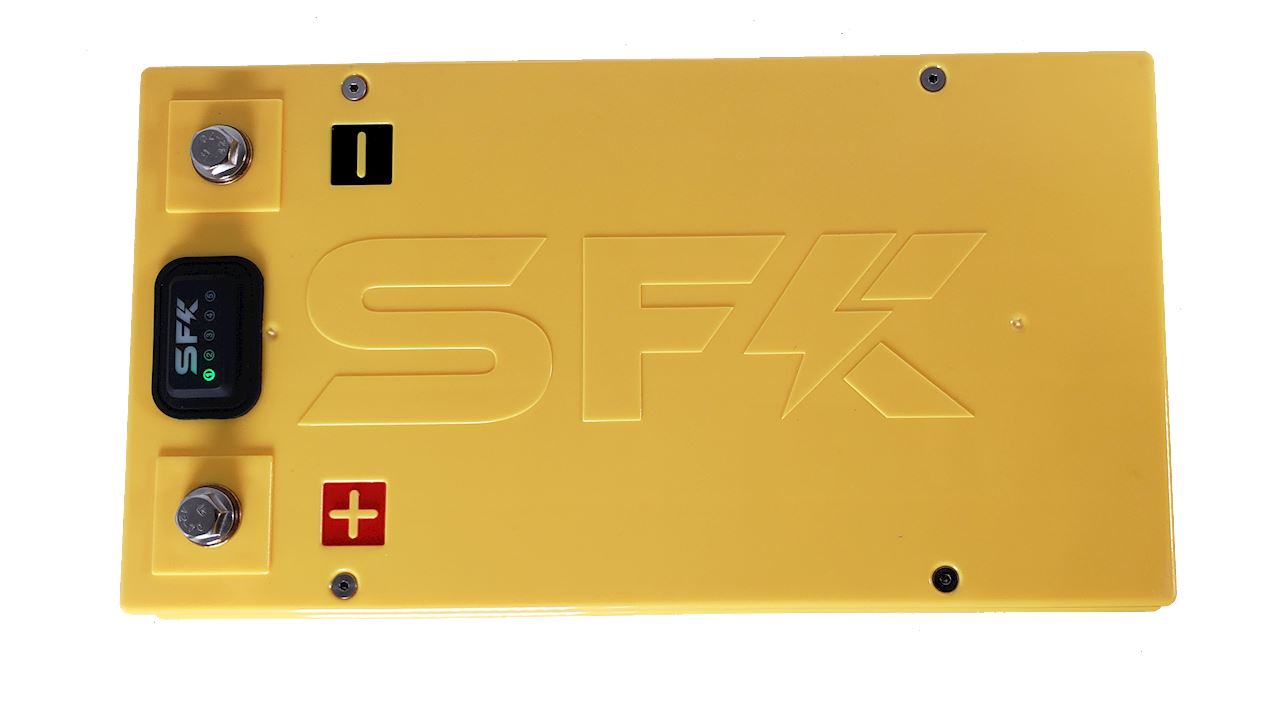

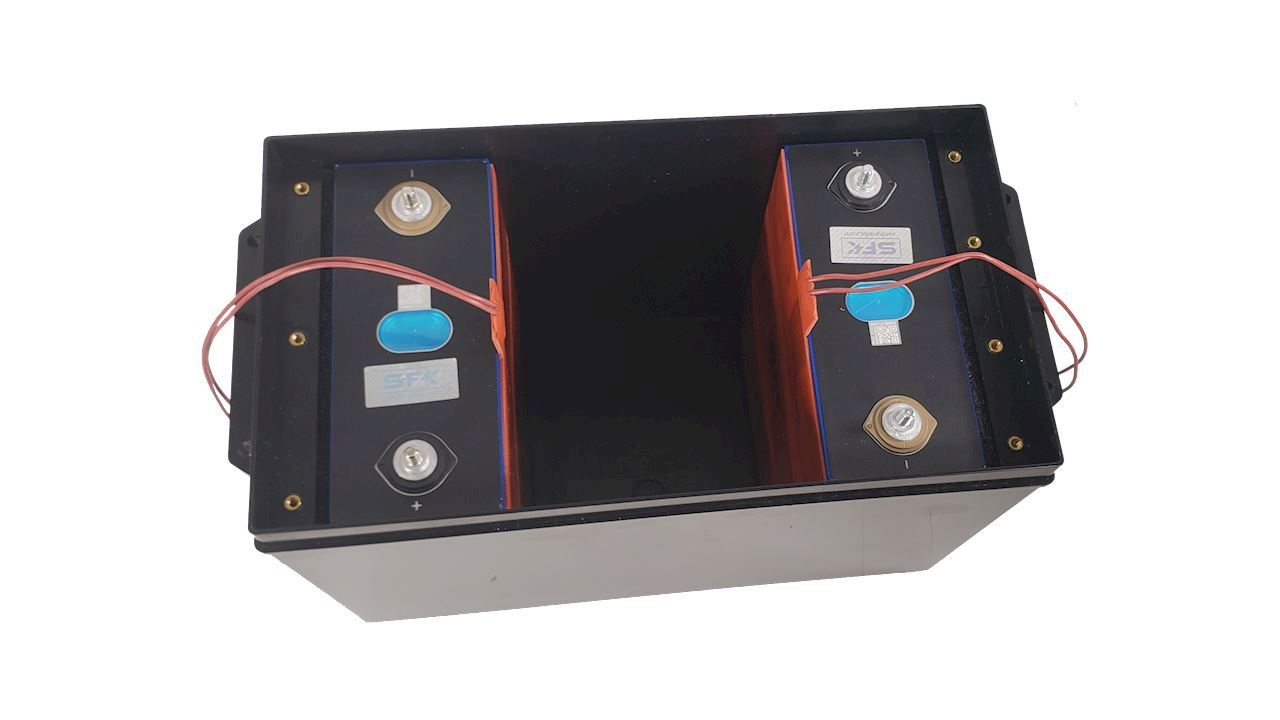

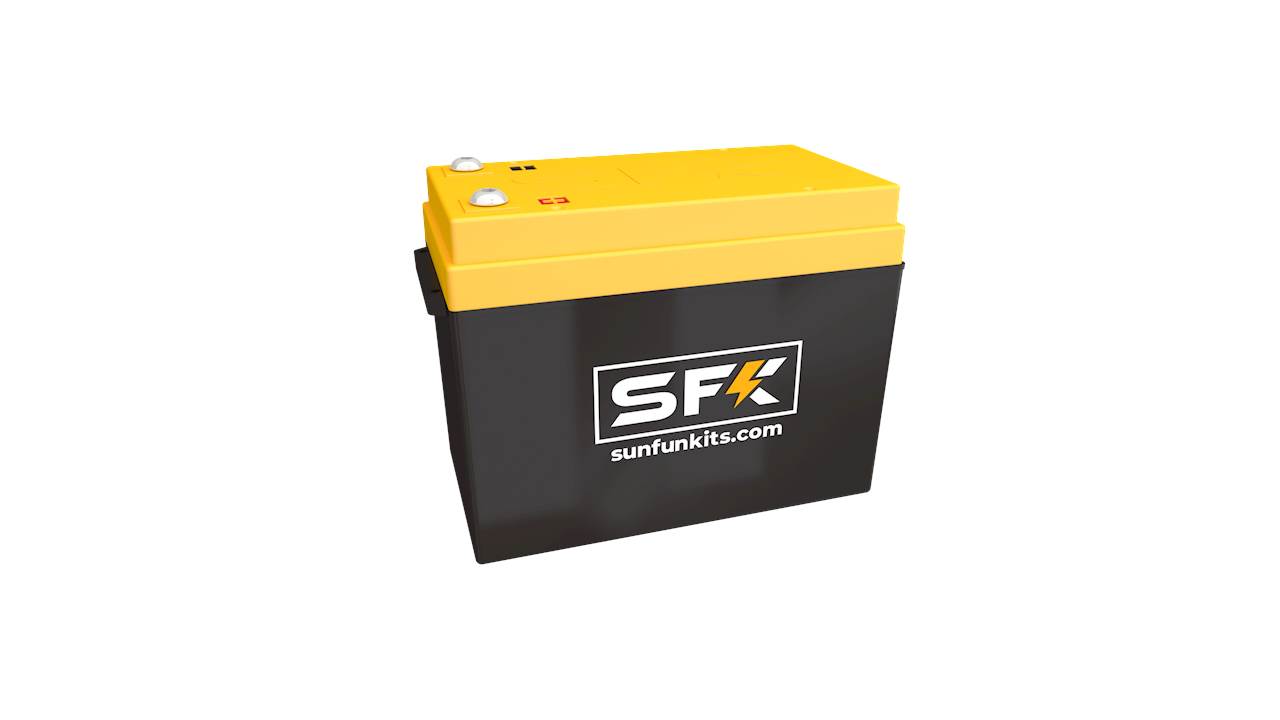

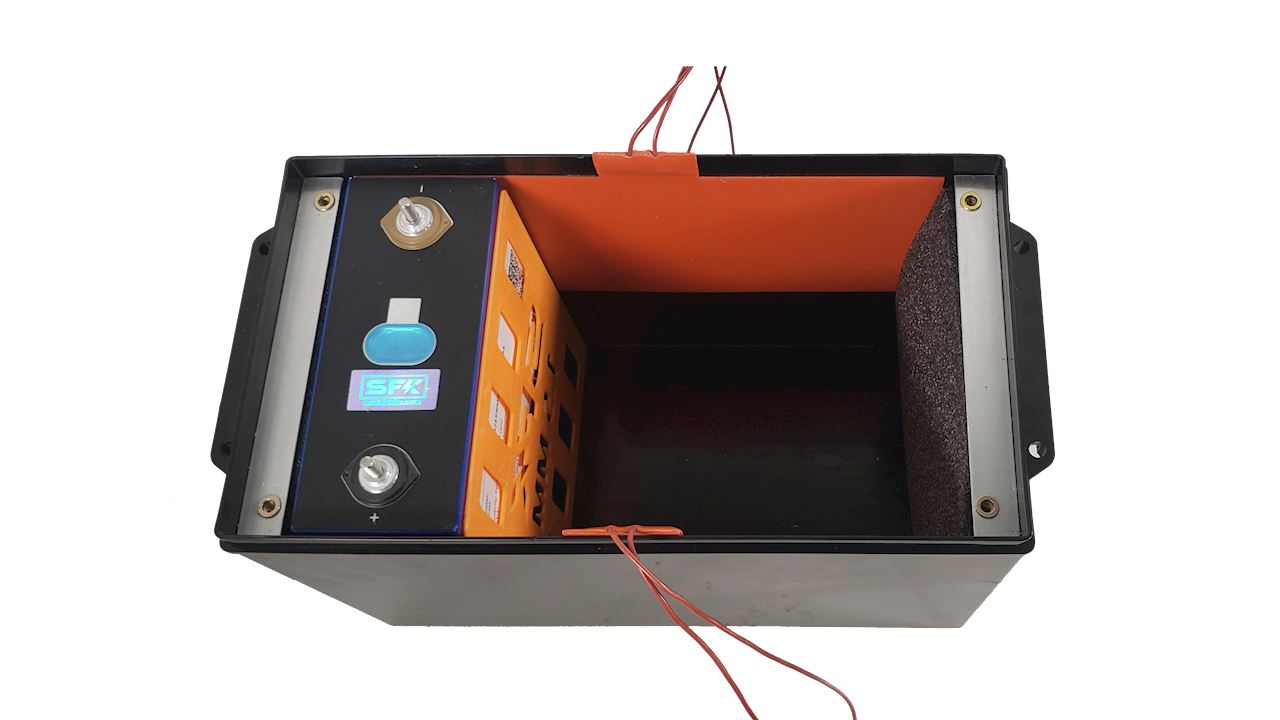

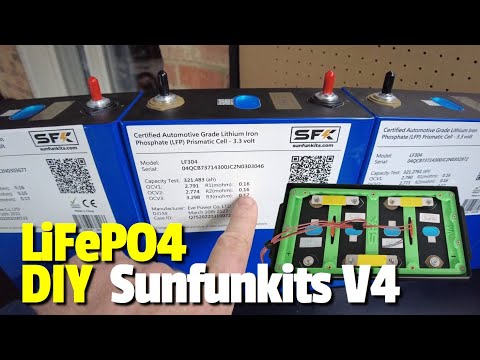

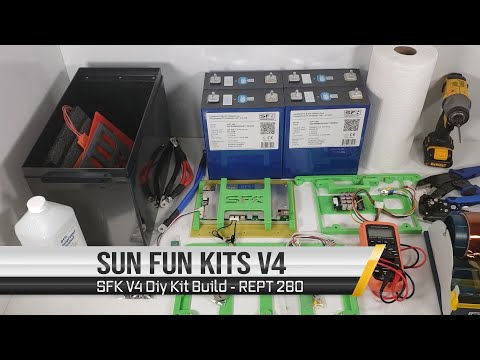

This is a complete ready to build combo KIT that includes all recommend components to build your DIY battery Kit. It incldes cells by EVE Lithium certified automotive grade, select from either endurance LF EVE 280K cells or High Performance EVE LF304 cells, the Sun Fun Kits 200A V2 BMS (now with 4S - 48V capability and built in heater port to automatically turn on the integrated heating pads) with complete wiring harness, the SFK battery Case, and a supplementary active balancing circuit.
Version includes a 3mm / 1/8" Garolite FR4 Fiberglass mounting plate for increase heat management and strength.

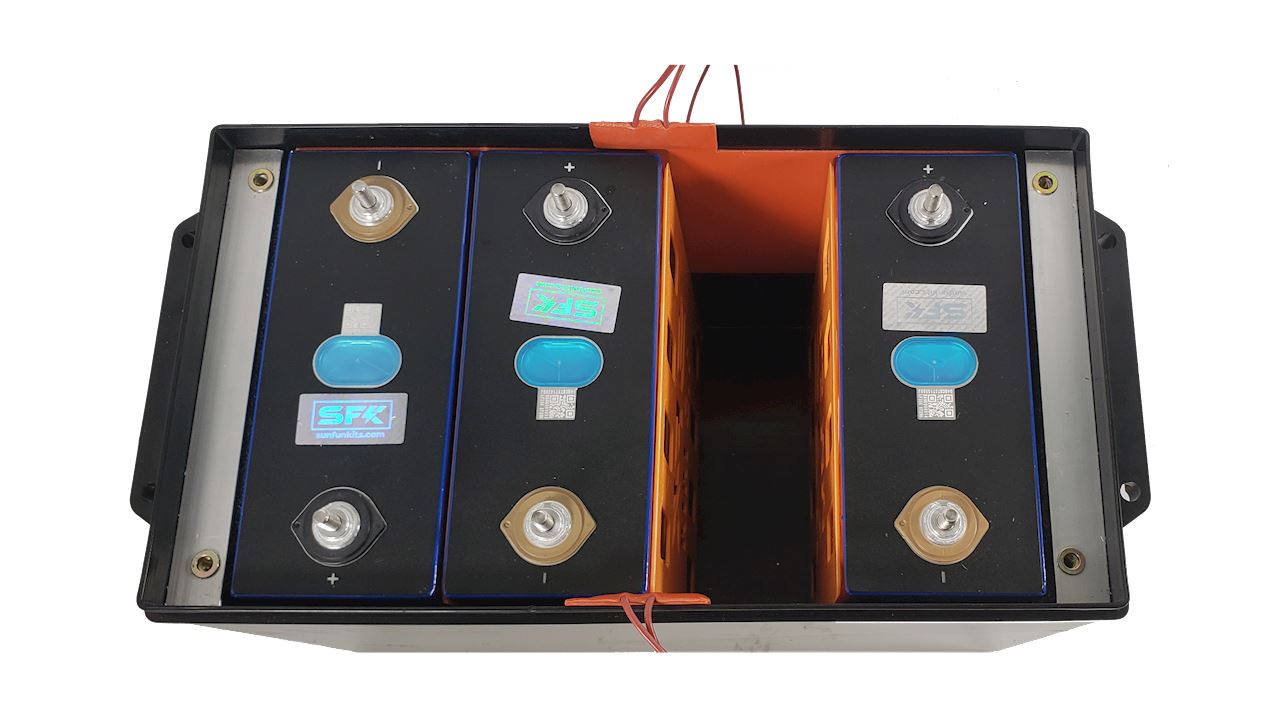

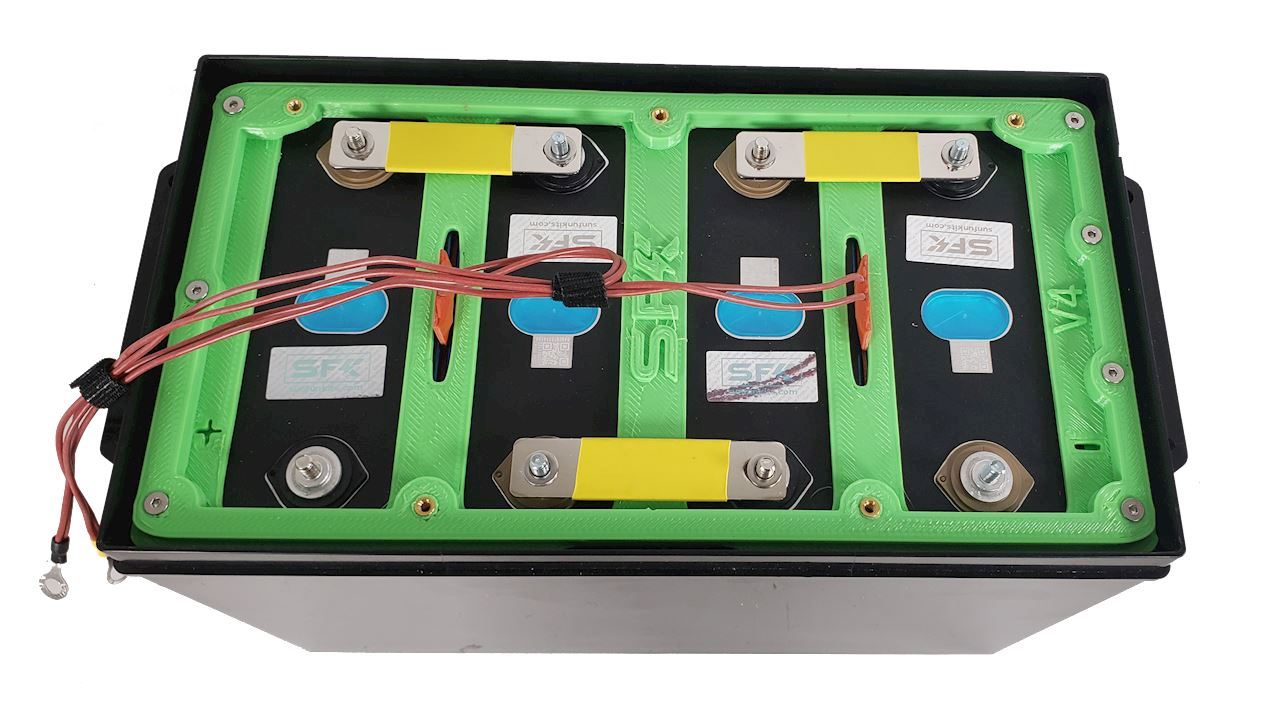

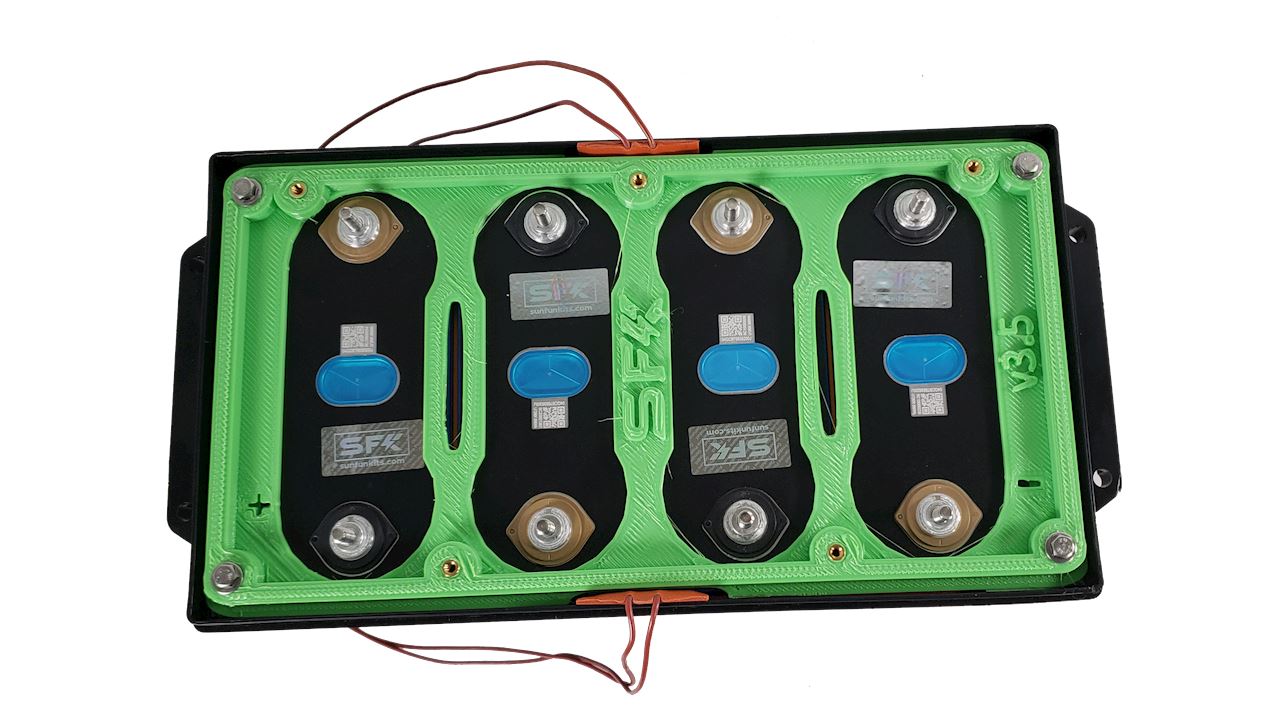

Version 4 makes installs easier and supports new cell separator shims to make your install bespoke and easier than ever before. The ultimate DIY kit for all hot & cold environments!
All Kits are built in the USA using domestic and globally sourced components and come with your standard 2 year limited warranty on the BMS & CASE.
| Shipping Availability | 1 Day |
| GTIN | 00850036385219 |
| Manufacturer | Sun Fun Kits |
| SKU | SFK-KIT-V4-HT-RTB |
| Battery Specs | |
| Certification Standard | GB/T 31485-2015 |
| Data Port | Add RS-485 Data port (RJ45) |
| Cell Compatibility | EVE LF280K , EVE LF280N , EVE LF304 , CATL 302 , CATL 280 , REPT 280 , REPT 302 , Lishen 272 |
| Cells | 4S |
| Construction Material | ABS, Aluminum, PLA |
| Terminal Studs | M8 |
| Cable Specs | |
| Wire Gauge | 2 AWG |
| Physical Specs | |
| Max Cell Height | 204 MM |
| Item Weight | 57 lbs (all components) , 25.8 KG |
| Height | 260 MM , 10.6 Inch , 13 Inch including Terminal Stud |
| Width | 180 MM , 7.5 Inch |
| Length | 345 MM , 13.6 Inch , 14.6 Inch / 371 MM Including handles |
| Inside Dimensions | 335 L x 180 W x 215 H (MM) , 13.2 L x 7.0 W x 8.4 H (Inch) , Tapered Dimensions |
| Kit Configurator | |
| Cell Type | Use you own cells , REPT 280 Endurance Cells (6000 Cycles) , EVE 280K V3 ESS Endurance (6000 Cycles) , EVE LF304 - High Performance Cells (3000 Cycles) |
| Lid Color | Yellow Lid , Black Lid |
| General Information | |
| Country of Origin | USA , China |
